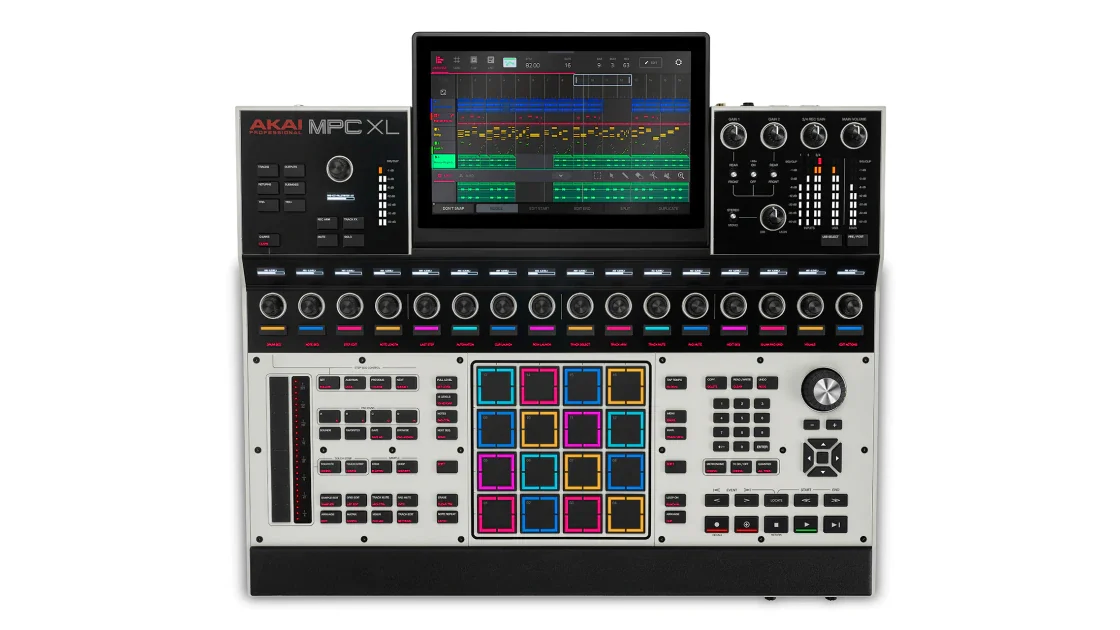

Akai MPC XL Standalone Music Production Center

SKU: 69MPC-XL

$4,799.00
Share:
  • IN STORE
  • Out Of Stock
  • SUPPLIER
  • 5+ In Stock
  • (Orders dispatched in 1 to 3 business days from Supplier)



(Orders dispatched in 1 to 3 business days from Supplier)

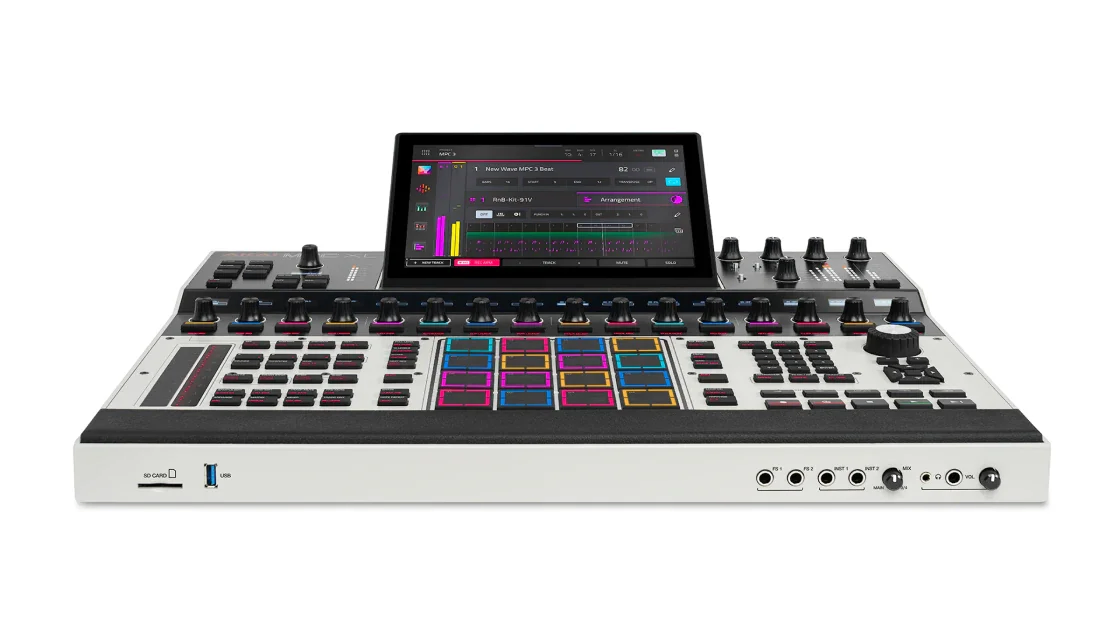

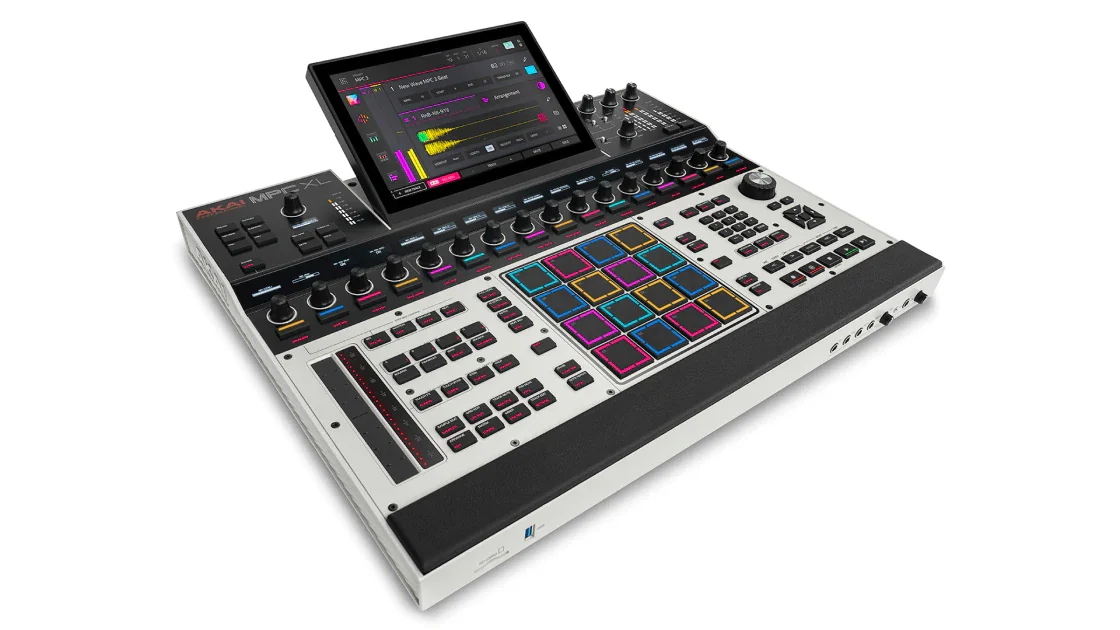

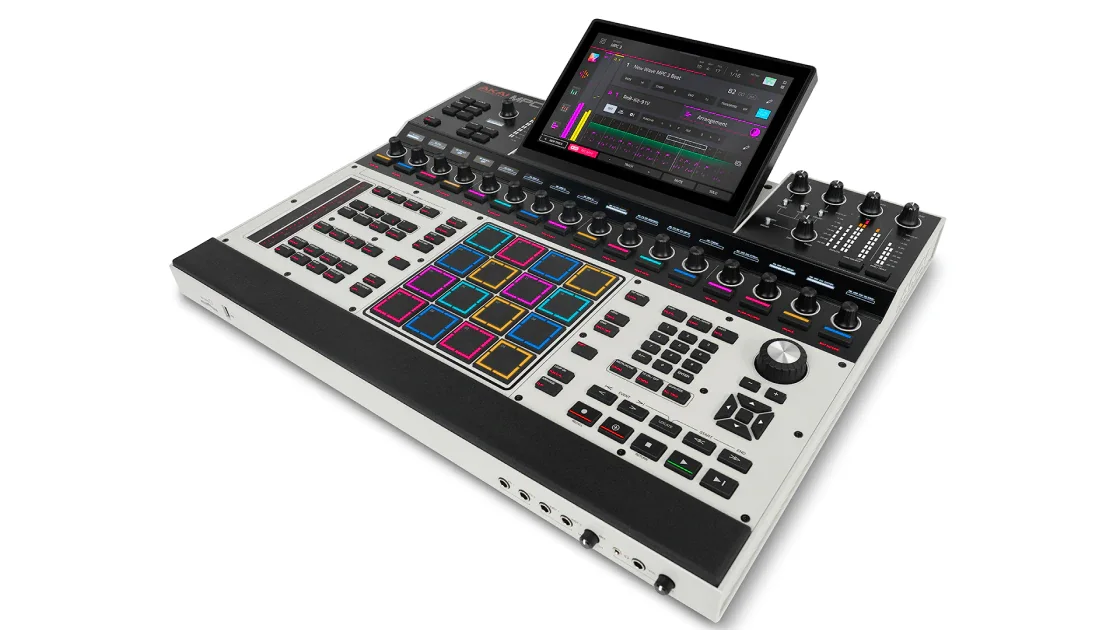

Akai MPC XL Standalone Music Production Center

Designed for computer-free, music-making workflows, MPC XL is the pinnacle of standalone power. This studio centerpiece features ultra-responsive MPCe pads, a dedicated step sequencer with 16 function modes, 16 touch-responsive Q-Links with OLED displays, a next-gen 8-core processor, 16 GB RAM, a hands-on performance touch-strip, and one-to-one surface control buttons. Building on the flexible, performance-first features MPC users love, MPC XL offers advanced sequencing, clip launching, pro stem separation, high-quality time-stretching, and powerful I/O connectivity.
Seamlessly integrated with MPC3 OS, this all-in-one system can load up to 32 plugin instruments and 16 audio tracks, with support for up to 256 simultaneous voices, making it a studio-grade workhorse that’s perfect for today's fast-moving producers.

Standalone hardware with MPC3 OS for a streamlined workflow

Gen 2 8-core processor with 4x the processing power of previous MPCs

16GB RAM for running multiple plugins simultaneously

256GB internal SSD storage for saving projects, plug-in instruments, samples, and presets

Expressive MPCe pads with 3D-sensing technology with 4 quadrants per pad

Assignable performance touch-strip for tactile control of Performance FX, note repeats, Channel faders, and more

Step sequencer with 16 RGB function buttons

16 Q-Link knobs with performance-control OLEDs for immediate visual feedback

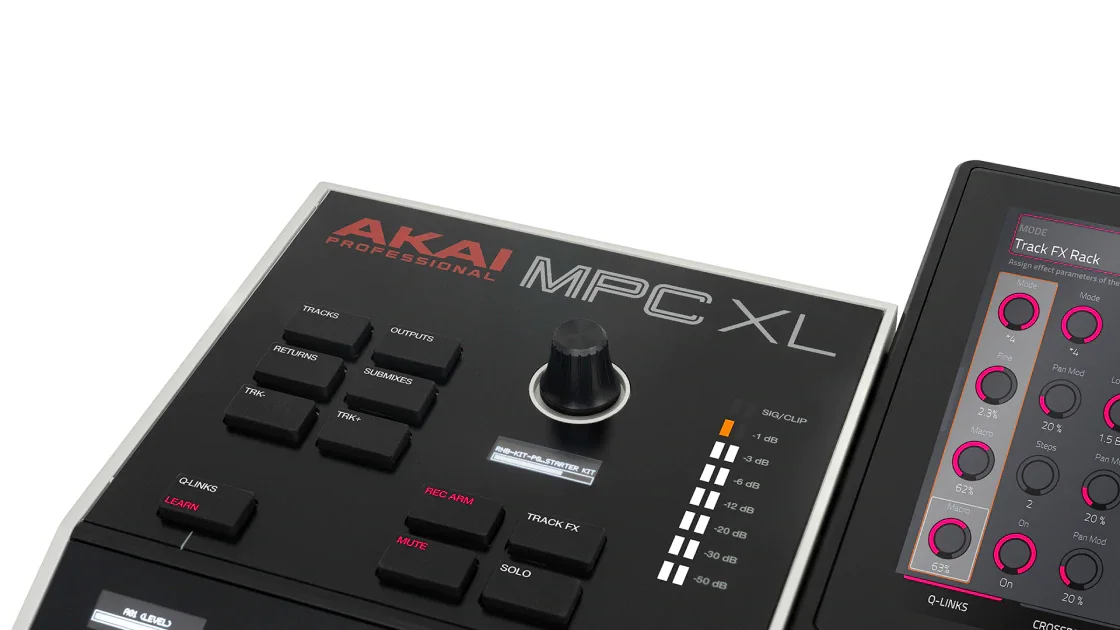

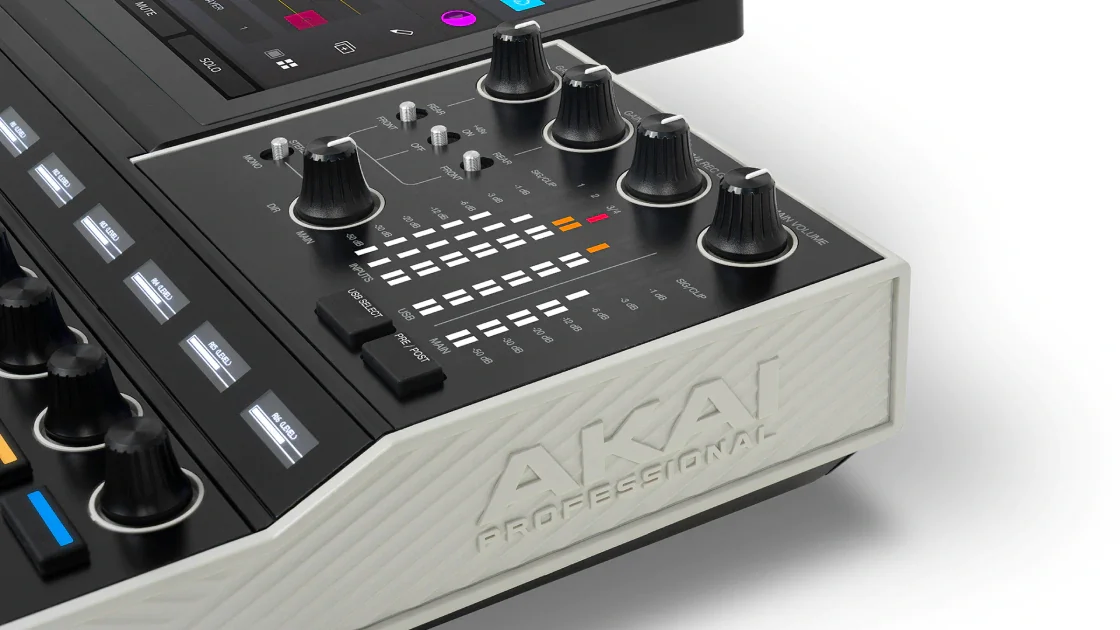

XL Channel Command allows for quick access to mixing and recording parameters (including level, sends, and outputs) at the touch of a button—with a dedicated OLED display and encoder for parameter control and visual feedback

One-to-one function buttons for immediate access to every feature

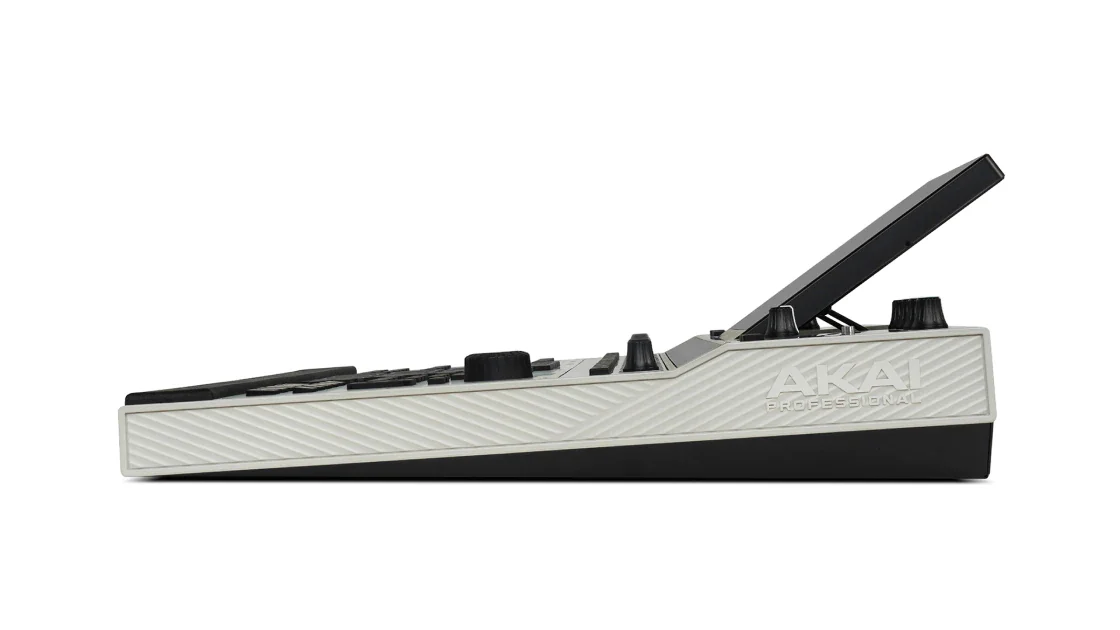

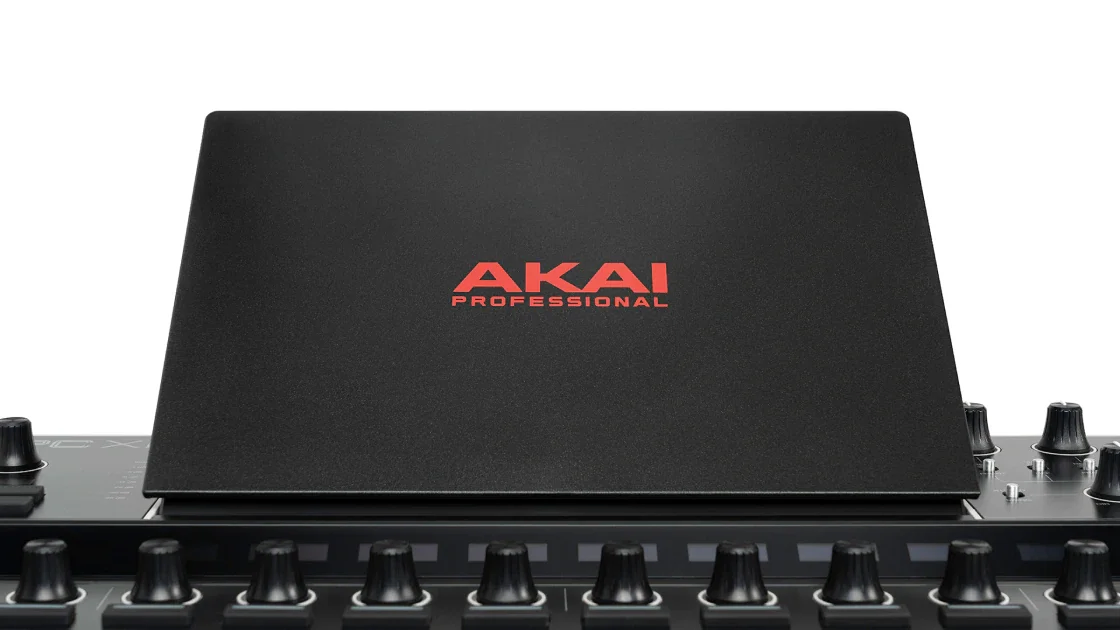

10.1” HD multi-gesture touchscreen with tilt

2 XLR/TRS combo inputs with mic preamps and phantom power for crystal-clear recordings

2 dedicated instrument inputs for recording guitars and keyboards

8 separate line outputs for external routing and mixing

USB-C connectivity for 24 channels of audio I/O, 32 channels of MIDI IO, and easy connectivity to sample from smart devices

8 stereo 1/8” CV/Gate outputs for a total of 16 CV outs

Wi-Fi and Bluetooth To enable wireless collaboration and file transfer

MPC Pro Pack. Powered by next-gen MPC3 OS and enhanced with new MPC Pro Pack features like studio-grade time-stretch, clip-launching, expanded CV control, and new pro plugins

Clip Matrix. Clip launch workflow for enhanced song arranging and performance

Digital Audio System

ADCs

24-bit @ 44.1, 48, or 96 kHz

DACs

24-bit @ 44.1, 48, 88.2, or 96 kHz

Digital Signal Processing

32-bit floating point

Mic Inputs 1–2

(2) balanced XLR+1/4” (6.35 mm) TRS

Frequency Response

20 Hz – 20 kHz (+0.19 / -0.16 dB)

Dynamic Range

109.8 dB (A-weighted)

SNR

109.3 dB (1 kHz, +4 dBu, A-weighted)

THD+N

0.001% (1 kHz, +4 dBu, -1 dBFS)

Preamp EIN

-134 dBu (max gain, 40 Ω source, A-weighted)

-129 dBu (max gain, 150 Ω source, unweighted)

Maximum Input Level

+12.7 dBu

Sensitivity

-45.5 dBu

Gain Range

58.2 dB

Line Inputs 1–2

(2) balanced XLR+1/4” (6.35 mm) TRS

Frequency Response

20 Hz – 20 kHz (+0.09 / -0.05 dB)

Dynamic Range

109.8 dB (A-weighted)

SNR

109.4 dB (1 kHz, +4 dBu, A-weighted)

THD+N

0.001% (1 kHz, +4 dBu, -1 dBFS)

Maximum Input Level

+20.1 dBu

Sensitivity

-9.6 dBu

Gain Range

29.7 dB

Line Inputs 3–4

(2) balanced XLR+1/4” (6.35 mm) TRS

Frequency Response

20 Hz – 20 kHz (+0.09 / -0.05 dB)

Dynamic Range

110.8 dB (A-weighted)

SNR

109.4 dB (1 kHz, +4 dBu, A-weighted)

THD+N

0.001% (1 kHz, +4 dBu, -1 dBFS)

Maximum Input Level

+20.3 dBu

Sensitivity

-10.3 dBu

Gain Range

30.6 dB

Instrument Inputs 1–2

(2) balanced XLR+1/4” (6.35 mm) TRS

Frequency Response

20 Hz – 20 kHz (+0.15 / -0.05 dB)

Dynamic Range

111.0 dB (A-weighted)

SNR

109.6 dB (1 kHz, +0 dBu, A-weighted)

THD+N

0.0013% (1 kHz, +0 dBu, -1 dBFS)

Maximum Input Level

+10.1 dBu

Sensitivity

-19.6 dBu

Gain Range

29.7 dB

Phono Inputs

(2) unbalanced RCA

Dynamic Range

103.3 dB (A-weighted, 65 mVrms @ 1 kHz, -1 dBFS, 20 Ω source)

SNR

97 dB (A-weighted, 4 mVrms @ 1 kHz, 20 Ω source)

THD+N

0.036% (1 kHz, -46 dBu, -1 dBFS)

Maximum Input Level

65 mVrms (1 kHz)

Sensitivity

2 mVrms (1 kHz)

Main Outputs 1–2

(2) impedance-balanced 1/4” (6.35 mm) TRS

Frequency Response

20 Hz – 20 kHz (+0.06 / -0.31 dB)

Dynamic Range

115.6 dB (A-weighted)

THD+N

0.003% (1 kHz, -1 dBFS)

Maximum Output Level

+20.3 dBu

Output Impedance

100 Ω

Line Outputs 3–8

(6) impedance-balanced 1/4” (6.35 mm) TRS

Frequency Response

20 Hz – 20 kHz (+0.06 / -0.24 dB)

Dynamic Range

116.3 dB (A-weighted)

THD+N

0.005% (1 kHz, -1 dBFS)

Maximum Output Level

+20.4 dBu

Output Impedance

100 Ω

Headphone Output

(1) 1/4” (6.35 mm) stereo headphone

(1) 1/8” (3.5 mm) stereo headphone

Dynamic Range

100.6 dB (A-weighted)

THD+N

0.025% (1 kHz, -1 dBFS, 10 mW/channel into 32 Ω headphones)

Frequency Response

20 Hz – 20 kHz (+0.06 / -0.31 dB)

Maximum Power Delivered

260 mW (<1% THD, 32 Ω headphones)

Maximum Output Level

+20.4 dBu

Output Impedance

32 Ω

Pads

(16) velocity- and pressure-sensitive pas with 3D-sensing technology

(8) banks (selectable via Pad Bank buttons)

Knobs

(17) 360° touch-sensitive Q-Link knobs

1) 360° encoder with push

(7) 270° knobs (gain, mix, level)

Buttons

(105) dedicated buttons

  • (36) single-color LED
  • (43) dual-color LED
  • (1) dual color + red
  • (17) RGB LED
  • (8) unlit

Display

(1) 1280×800 full-color, optically bonded, multi-touch display (10.1” / 256.5 mm)

(17) monochrome 128×32 OLED displays

CPU

Processor:

8-core processor

RAM:

16 GB

Storage:

256 GB internal NVMe SSD + SATA expansion bay

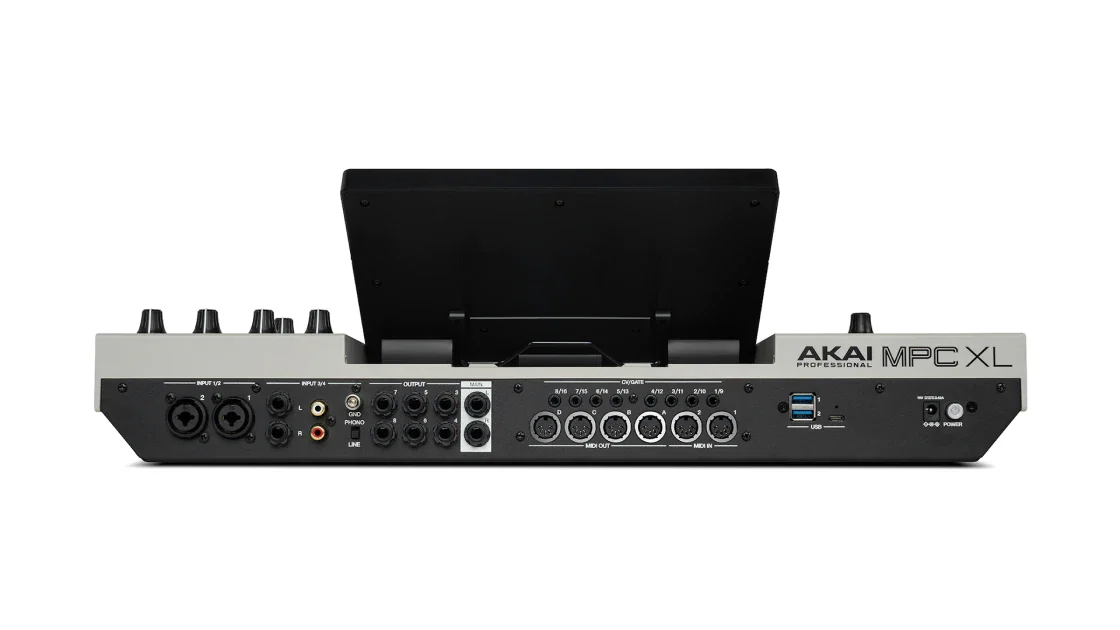

Connections

(2) 1/4” (6.35 mm) combo XLR/TRS inputs (stereo pair)

(2) 1/4” (6.35 mm) TRS line inputs (stereo pair)

(2) RCA phono inputs (stereo pair)

(2) 1/4” (6.35 mm) instrument inputs

(2) 1/4” (6.35 mm) TS footswitch inputs

(8) 1/4” (6.35 mm) TRS outputs (4 stereo pairs)

(1) 1/4” (6.35 mm) stereo headphone output

(1) 1/8” (3.5 mm) stereo headphone output

(4) 5-pin MIDI outputs

(2) 5-pin MIDI inputs

(8) stereo 1/8” (3.5 mm) CV/Gate outputs

(1) USB Type-C port

(3) USB Type-A ports

(1) SD card slot

(1) power adapter input

(1) drive bay for 2.5” SATA drive

Wireless

Wi-Fi

Bluetooth

Power

via power adapter:

19 V, 3.42 A, center-positive (adapter included)

Dimensions

21.4” × 19.2” × 3.7”

543 × 488 × 94 mm

Weight

15.87 lbs

7.2 kg

SKU 69MPC-XL
Barcode # 0816311012379
Brand Akai
