Boss GK5-KIT-B Advanced Divided Bass Pickup Kit

SKU: GK5KITB

$535.00
RRP $629.00
SAVE $94.00
Share:
  • IN STORE
  • Out Of Stock
  • SUPPLIER
  • 5+ In Stock
  • (Orders dispatched in 1 to 3 business days from Supplier)



(Orders dispatched in 1 to 3 business days from Supplier)




Boss GK5-KIT-B Advanced Divided Pickup Kit

Advanced Divided Pickup Integration
The GK5-KIT-B allows for immaculate customization of four-, five-, or six-string electric basses with BOSS’s advanced GK-5B Divided Pickup system. Featuring expanded fingertip controls, players can take advantage of the innovative Serial GK digital interface while operating a BOSS guitar/bass synthesizer or V-Guitar product alongside their instrument’s regular pickup signal.

Dedicated Kit for Ultimate Serial GK Integration

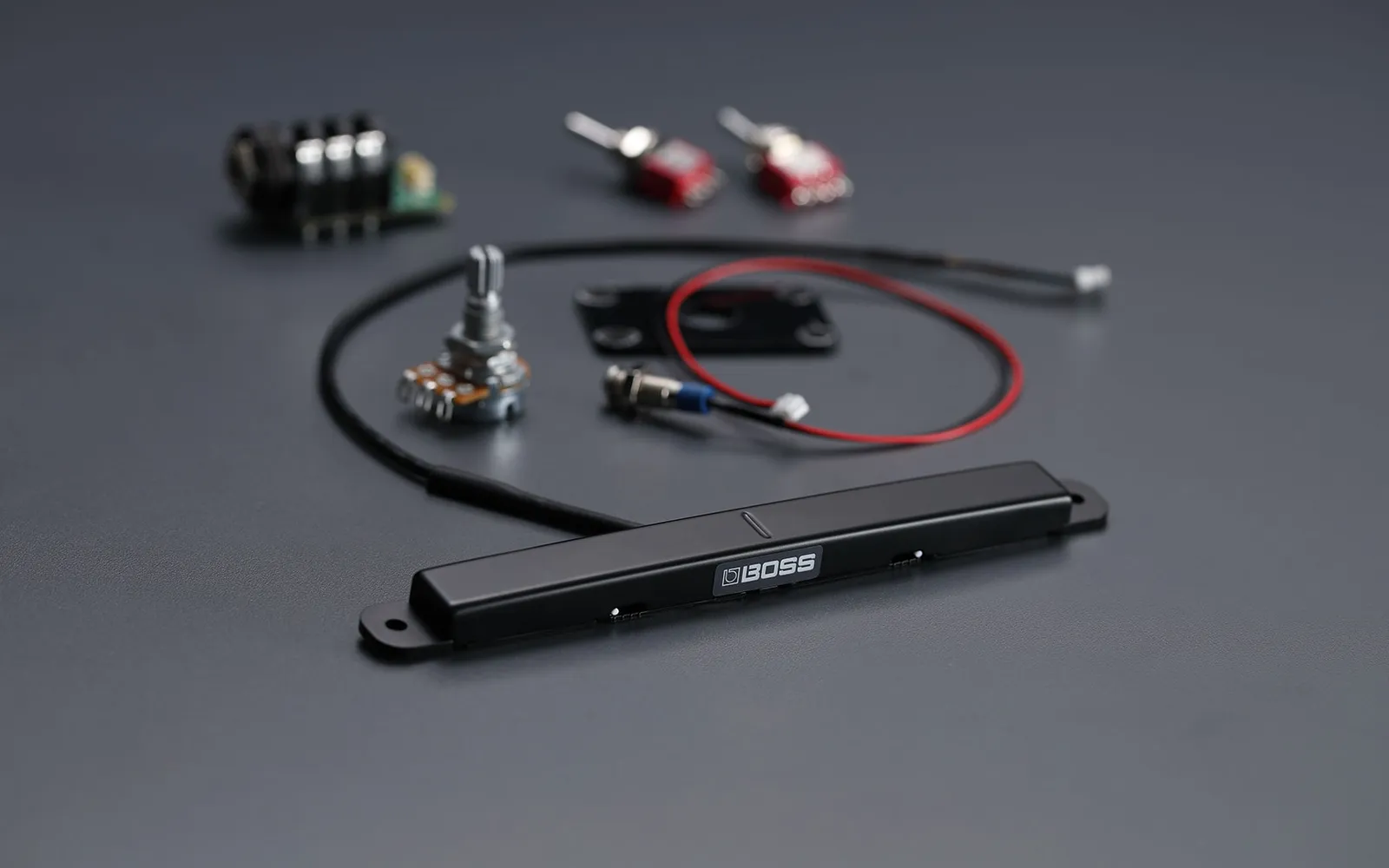

The GK5-KIT-B Divided Pickup Kit has been designed exclusively for electric basses with four, five, or six strings. It contains the necessary parts for complete professional installation of BOSS’s GK-5B Divided Pickup with expanded controls. For ease of use, controls can be appropriately positioned at the player’s discretion during the customization process. Parts include the GK-5B unit itself, a circuit board, the Serial GK connector board/plate, a level pot, and switches, plus an LED, wires, springs, and screws.

Expanded Fingertip Control
Once installed, the GK5-KIT-B system works in complete harmony with the instrument’s standard pickup harness. Both outputs can be selected independently or blended using the three-way toggle switch. A three-way momentary switch activates two controls (S1 and S2) that can be assigned to various functions depending on the GK-compatible device attached. Similarly, the GK knob adjusts the volume level or a variety of assignable parameters. A handy LED lets you know when the GK5-KIT-B is receiving power.

Installing this product requires modifications to your guitar/bass. Ask a dealer or repair shop that specializes in modifying and installing guitar/bass parts to do this work. Note that any issues or accidents that may occur during installation, as well as repairs that may be required after installation, are the customer’s responsibility, and Roland offers no guarantees or repairs in this regard.

Features:

  • All-in-one kit flawlessly integrates BOSS’s next-generation GK-5B Divided Pickup with steel-string electric basses
  • Supports the Serial GK interface in the latest BOSS synthesizer and V-Guitar products for guitar and bass
  • Stable digital signal transmission
  • Includes dedicated wiring for regular active or passive pickup signals
  • Three-way momentary switch activates two assignable device function controls (S1 and S2)
  • GK knob continuously controls volume and other assignable parameters in the connected product
  • Three-way toggle switch selects GK, regular pickup, and mixed signal outputs
  • LED indicator illuminates when power is supplied

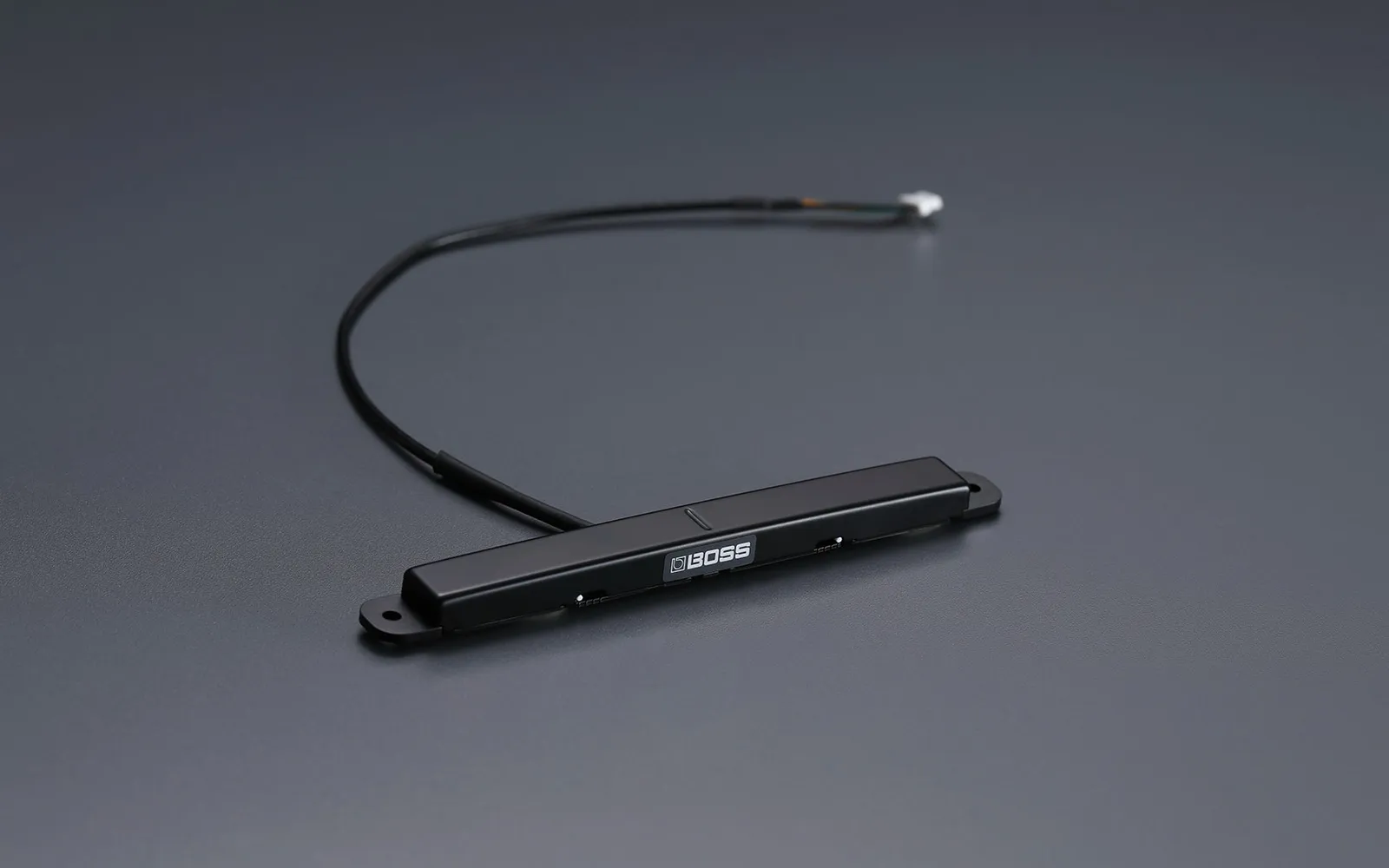

  • Flat, slimline pickup fits on most electric basses with four, five, or six strings
  • Adjustable sensor spacing to match most bass bridges
  • Specially designed BOSS Serial GK cables (BGK series) available for stable and accurate operation with your Serial GK product
  • Drives 13-pin GK devices via the GKC-DA GK Converter (available separately)

Specifications:

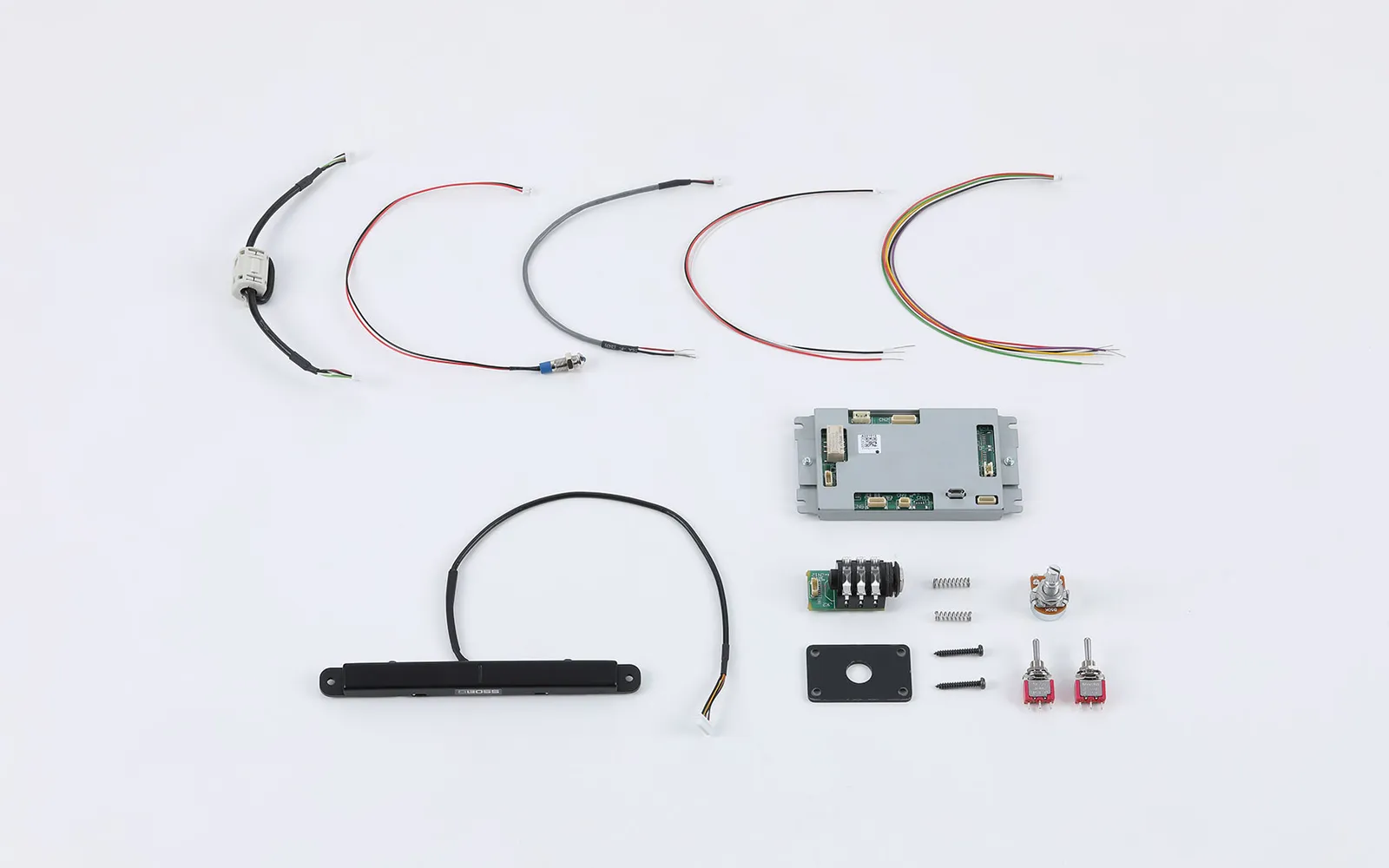

Supplied parts contents
Divided pickup x 1
Main board unit x 1
GK connector board x 1
GK connector plate x 1
Installation screws for the divided pickup (M3 x 20) x 2
Divided pickup installation springs x 2
BASS/MIX/GK select switch (toggle switch) x 1
S1/S2 switch (momentary switch) x 1
GK volume (50 k ohms B curve) x 1
LED indicator (with wiring) x 1

Wiring
Wiring (3 cores) for bass signal x 1
Wiring (6 cores) for GK switch x 1
Wiring (3 cores) for GK volume x 1
Wiring (5 cores) for GK connector x 1

Parts should be arranged separately
Screws for attaching the GK connector installation plate onto the bass x 4
Screws for attaching the main board unit onto the bass x 4

Maximum input level on normal bass input
INPUT: +11 dBu

Accessory
Owner's Manual

Options
(sold separately)
Serial GK cable: BGK-3 (3 ft./1 m), BGK-15 (15 ft./4.5 m), BGK-30 (30 ft./9 m)

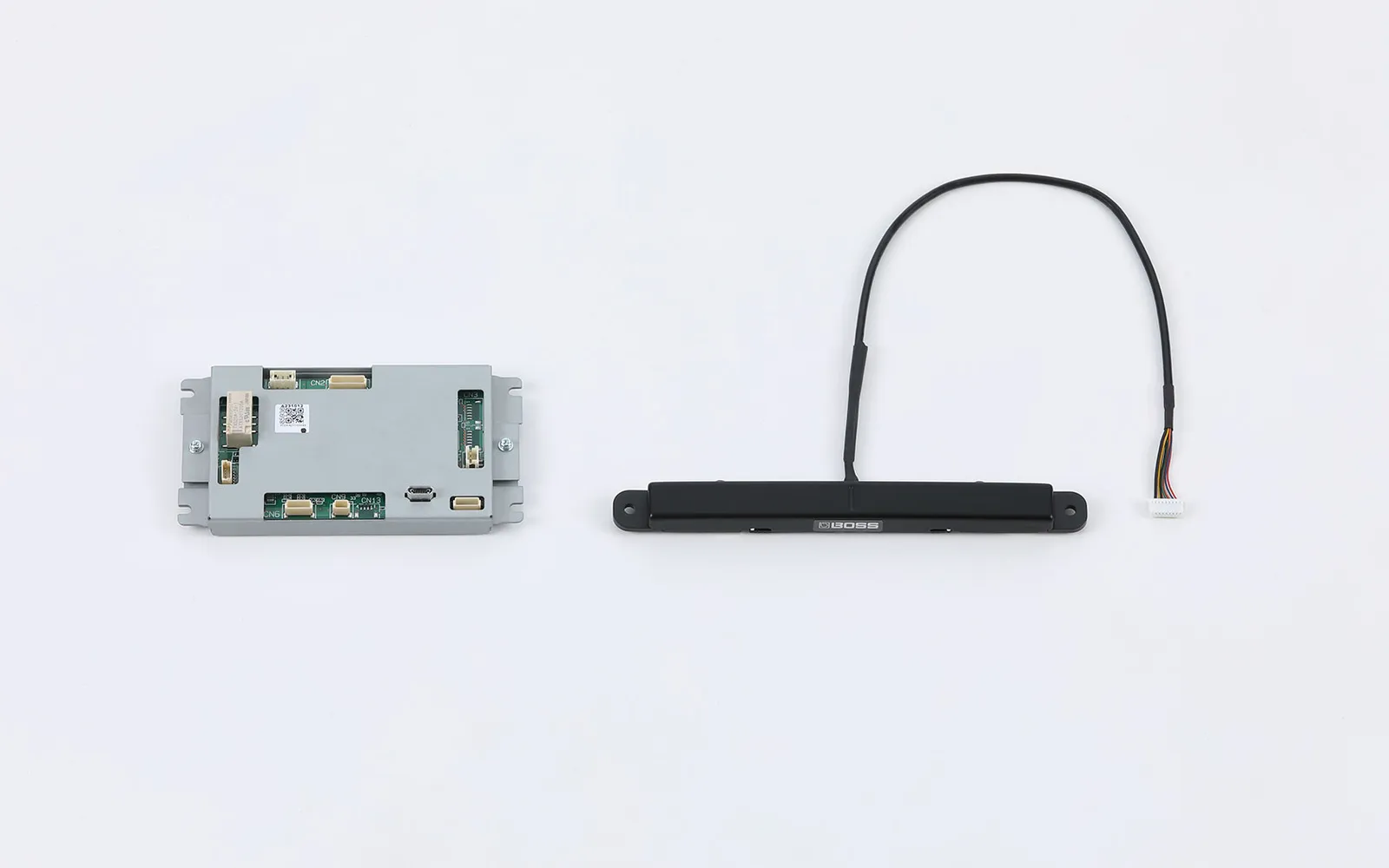

Size and Weight (Main board unit)
Width - 100 mm, 3-15/16 inches
Depth - 54.4 mm, 2-3/16 inches
Height - 13.4 mm, 9/16 inches
Weight - 70 g, 3 oz

Size and Weight (Divided pickup)
Width - 138 mm, 5-7/16 inches
Depth - 14.1 mm, 9/16 inches
Height - 8.8 mm, 3/8 inches
Weight - 25 g, 0.9 oz

Weight (Others)
Weight50 g, 2 oz

SKU GK5KITB
Barcode # 761294518717
Brand Boss
