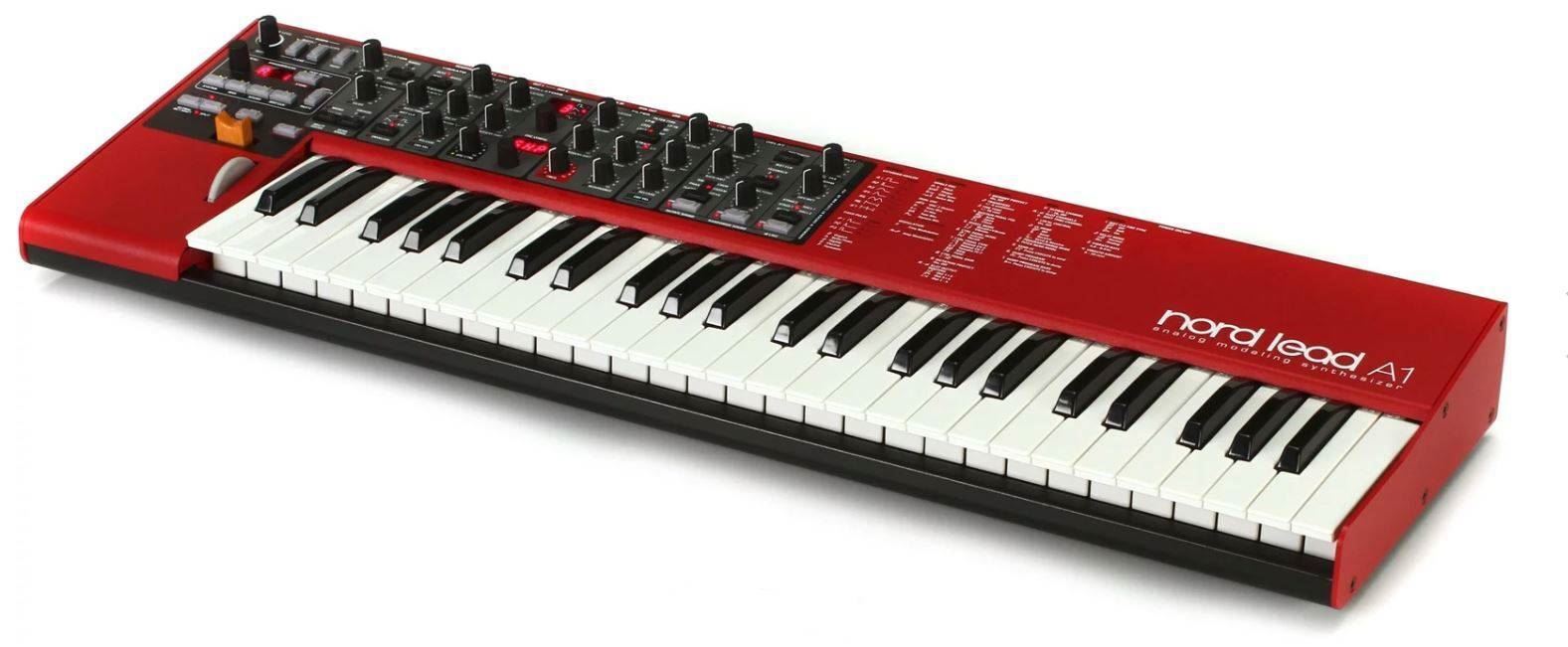

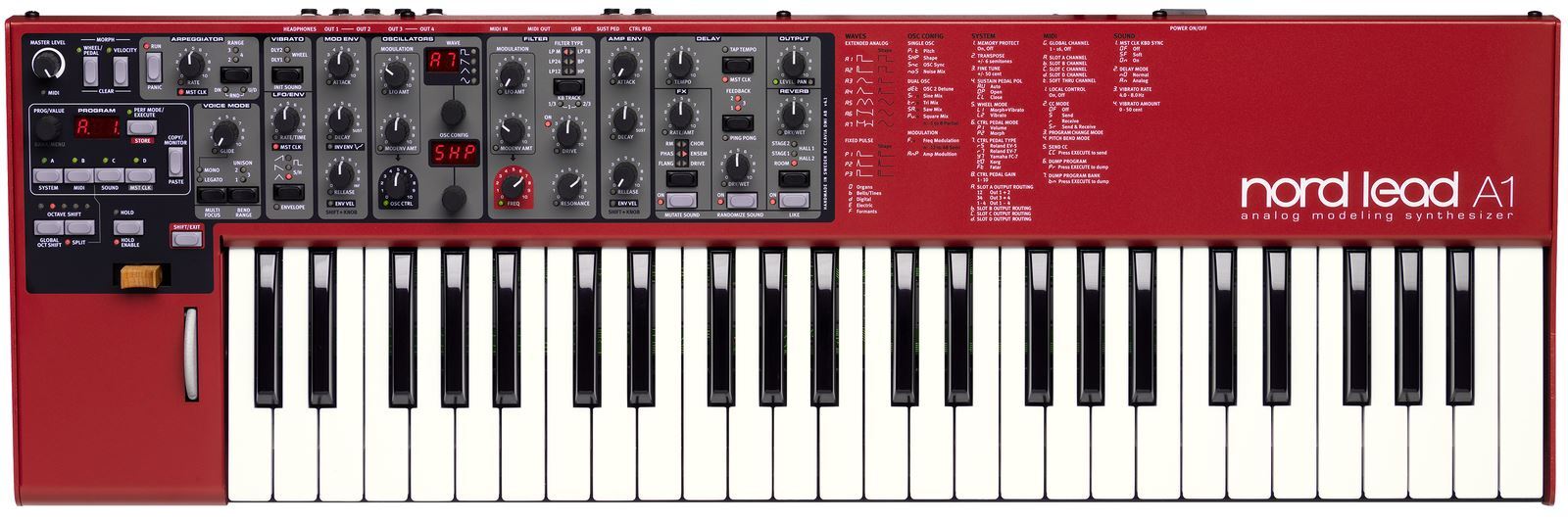

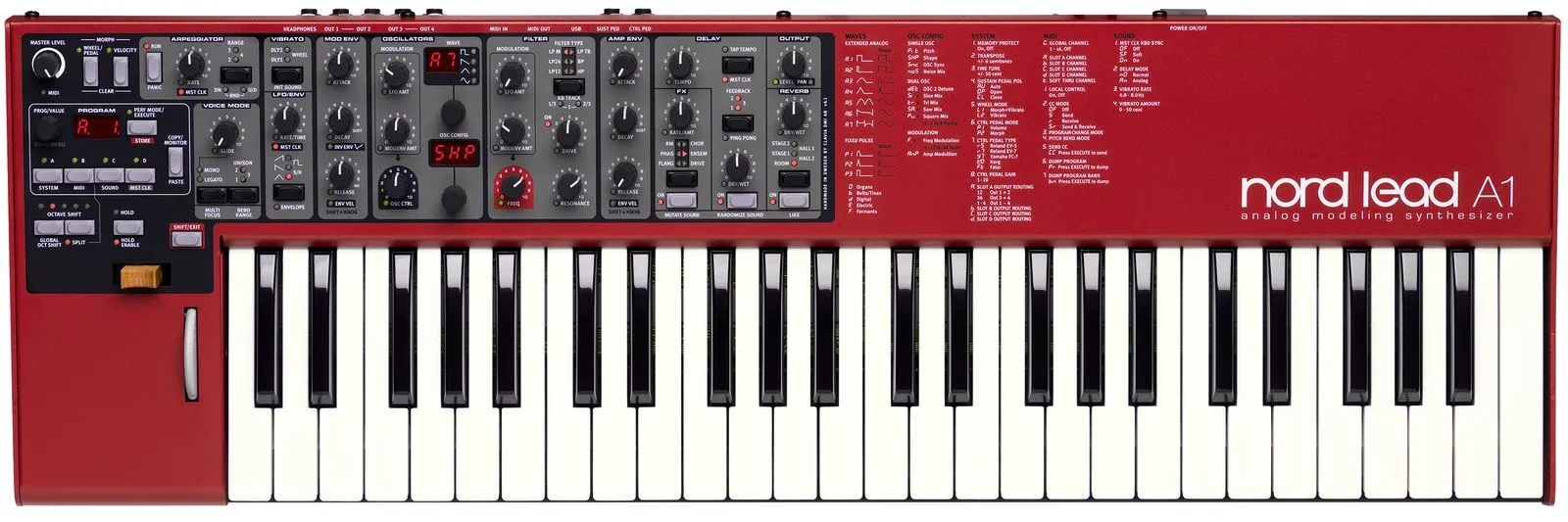

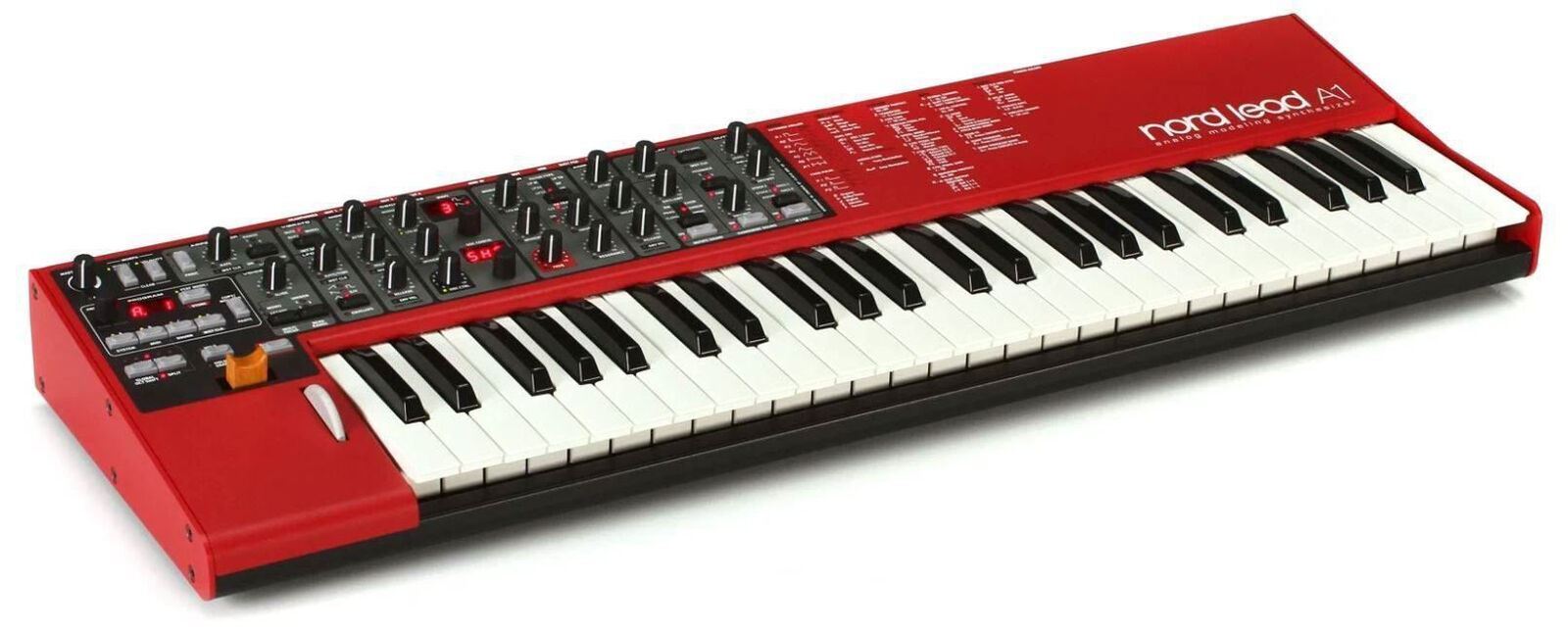

Nord Lead A1 Analogue Modelling Synthesizer

49 Key Velocity Sensitive

SKU: 25NLA1

$2,649.00
RRP $2,999.00
SAVE $350.00
Share:
  • GOLD COAST MUSIC
  • Out Of Stock
  • SYDNEY WAREHOUSE
  • 5+ In Stock
  • (Orders dispatched in 1 to 3 business days from Sydney)



(Orders dispatched in 1 to 3 business days from Sydney)






The new Nord Lead A1 analogue modelling synthesizer – a stunning sounding synthesizer with a simplified yet hugely powerful front panel interface
The Lead for Speed

Producing stand-out sounds for live or for the studio, the Lead A1 is ideal for all musical genres. Thanks to its carefully thought-out user interface, the Lead A1 encourages experimentation, allows for far speedier programming than would otherwise be possible, and ultimately delivers sensational sonic results.


GENERAL FEATURES
49-key octave velocity sensitive keyboard with octave shift buttons (+/-2 octaves).
Keyboard Split with 2 slots for the upper and lower sections.
Modulation Wheel
Pitch Stick (with no dead zone at zero crossing).
Programmable Pitch bend range, up to +/- 4 octaves
Separate up/down bend range: -12 or -24 semitones, + 2 semitones
1 pedal input for sustain.
1 pedal input for expression pedal.


USER INTERFACE

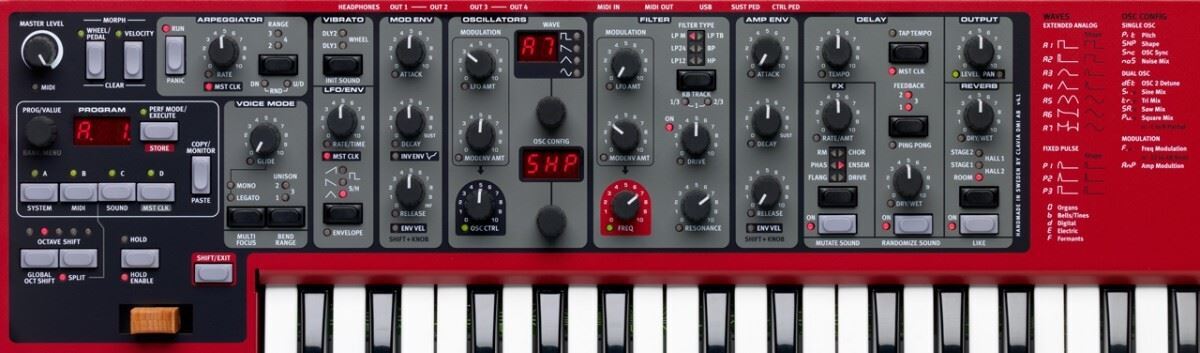

3 LED displays, 23 knobs, 3 encoders and 20+ buttons for program and performance editing.

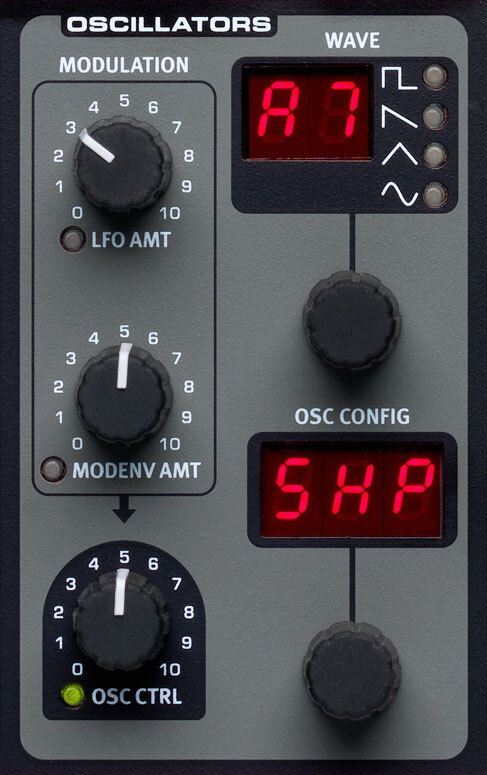

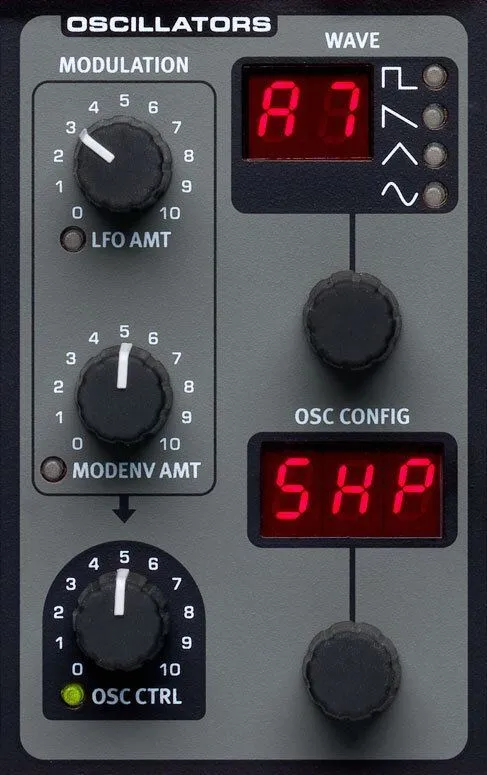

OSCILLATOR SECTION
Multiple Oscillator waveforms (traditional analog, extended analog, pulse waveforms, wavetable)
OSC config knob 8 categories (Pitch, Detune, Shape, Sync, Ring Modulation, Noise, Dual Osc, FM)

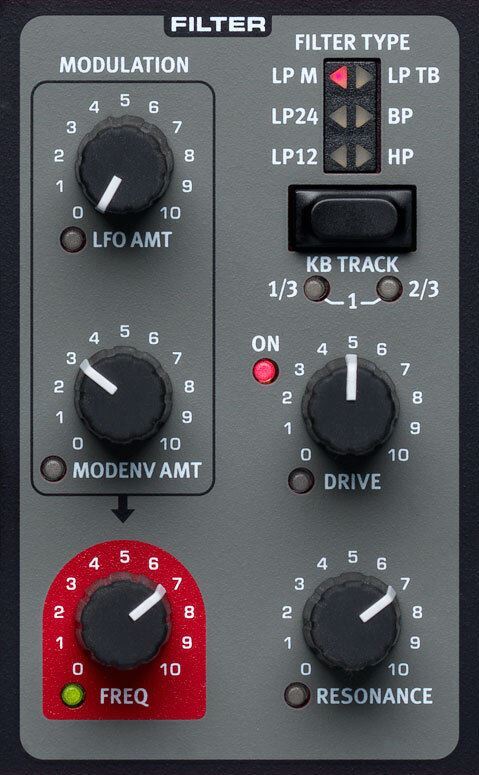

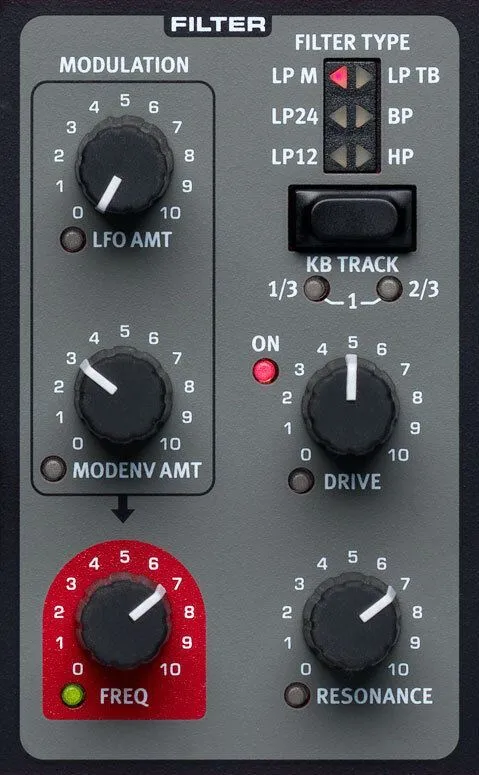

FILTER SECTION
Multi-mode filter with 12 dB (2-pole) low pass, 24 dB (4-pole) lowpass and band pass, high pass, Ladder M and Ladder 303 characteristics.
Cut off, Resonance, envelope amount, envelope amount controlled by velocity.
ADR/ASR envelope.
Filter keyboard tracking can be set to off, 1/3, 2/3 or full.
Adjustable Filter Distortion.


MODULATION SECTION
LFO 1 generates a triangle, square, sawtooth, inverted sawtooth or sample and hold waveforms. LFO 1 can be routed to Filter Frequency, Pitch, Shape and Osc mod. The LFO 1 rate can be synchronised to the Master Clock.
LFO can be switched to Env mode with three different characteristics and sample and hold is manually triggered by keyboard.

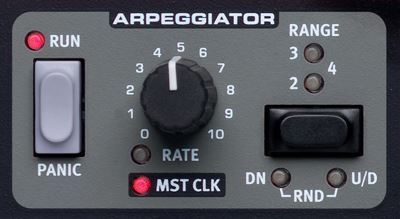

Arpeggiator: Range: 1 - 4 octave. Modes: up, down, up/down, random, Poly. The Arpeggio rate can be synchronised to the Master Clock.
ADR/ASR envelope, velocity control on/off, inverse envelope on/off.


AMPLIFIER SECTION
AD/SR envelope, velocity control on/off, gain control.
individual Pan-control per program


PERFORMANCE SECTION
Voice modes: Poly, Legato with portamento, Mono, True Unison 1, 2 & 3.
Four program slots for layering possibilities.

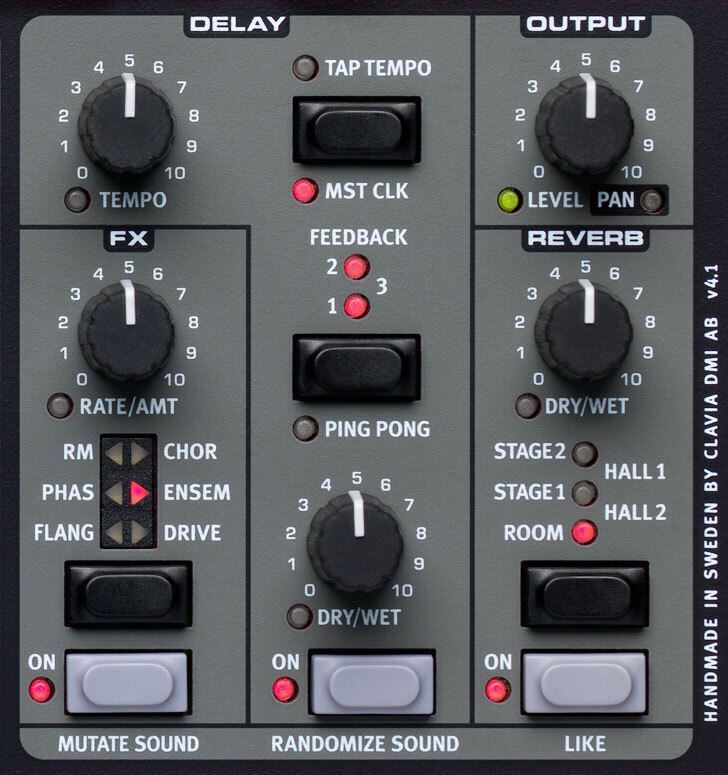

EFFECTS
FX section with Flanger, Phaser, Ring Modulation, Chorus, Ensemble and Drive.
Delay section with tap tempo, four stages of feedback, ping-pong, dry/wet mix. The Delay speed can be synchronised to the Master Clock.
Reverb section with five algorithms (Room, Stage 1, Stage 2, Hall 1, Hall 2).


MEMORY
Programs (single sounds): 8 x 50 (400) locations
Performances (multi sounds): 4 x 50 (200) locations


AUDIO OUT
4 outputs. Each slot can be assigned to its own output.
Headphones output.
High resolution low noise 24 bit DACs.


MIDI FEATURES
All control knobs and switches send and receive control change messages.
System exclusive bulk dumps. One program or all programs.
Master Clock will sync to incoming MIDI clock.
Soft Thru


CONNECTION
4 Line Level Audio Outputs - ¼", 6,35 mm jacks, unbalanced
Stereo Headphone Output - ¼", 6,35 mm stereo jack
Sustain Pedal - ¼", 6,35 mm jack. Use a momentary pedal, like e.g., Roland DP-2, DP-6, Yamaha FC-4, FC-5, Fatar VFP1-25 etc.
Control Pedal - ¼", 6,35 mm TRS stereo jack. Use a Yamaha FC-7, Roland EV-7, Roland EV-5, Korg EXP2 or Korg XVP10.
USB connector with MIDI capabilities
MIDI In & Out - 5 pin DIN connectors


DIMENSIONS
Nord Lead A1: 864 x 94 x 272 mm (34.0 x 3.7 x 10.7")


WEIGHT
Nord Lead A1: 4.85 kg (10.7 lbs)

  • Sound Engine Type(s): Modeling
  • Number of Keys: 49
  • Type of Keys: Synth-weighted, Velocity-sensitive
  • Other Controllers: Pitch Stick, Mod Wheel
  • Polyphony: 24 Notes
  • Number of Effects: 6
  • Effects Types: Ensemble, Chorus, Phaser, Flanger, Ring Modulator, Drive
  • Arpeggiator: Yes
  • Audio Outputs: 4 x 1/4"
  • Headphones: 1 x 1/4"
  • USB: 1 x Type B
  • MIDI I/O: In/Out/USB
  • Pedal Inputs: 1 x Sustain, 1 x Expression
  • Power Supply: Internal
  • Height: 1.1m
  • Width:  .86m
  • Depth:  .3m
  • Weight: 4.85kg
SKU 25NLA1
Brand Nord

Oscillators

  • Unique Oscillator concept
  • 8 Oscillator Configurations
  • Pitch, Detune, Shape, Sync, AM, Noise, Sub Mix, FM
  • Traditional Analog and Digital Waveforms
  • Unison

Modulation

  • LFO with 5 waveforms
  • Mod Envelope
  • LFO as additional ModEnv

Filter

  • 12, 24 dB low-pass filters
  • High-pass and Band-pass filters
  • Transistor and diode ladder filter simulations
  • of Mini and TB-303

Effects

  • Ensemble, Chorus, Phaser, Flanger, Ring Modulator, Drive

Performance

  • 4-part multi-timbral
  • Master Clock Sync of Arpeggiator, LFO and Delay
  • Velocity and Mod Wheel Morph
  • USB MIDI

Special features

  • Mutator
  • Like Button
  • Extra Fat Unison mode



Features at a glance:

  • 8 Oscillator Configurations
  • Pitch, Detune, Shape, Sync, AM, Noise, Sub Mix, FM
  • Traditional Analog and Digital Waveforms
  • Unison, Modulation
  • 12, 24 dB low-pass filters
  • Transistor and diode ladder filter simulations of Mini and TB-303
  • Ensemble, Chorus, Phaser, Flanger, Ring Modulator, Drive
  • Master Clock Sync of Arpeggiator, LFO and Delay
  • Extra Fat Unison modes
  • Like Button
  • Mutator
