NU-X Mini Core Series Pulse IR Loader, Acoustic Guitar & Cabinet Simulator

Mini IR Loader

SKU: NXNSS4

$160.00
RRP $179.95
SAVE $19.95
Share:
  • IN STORE
  • Out Of Stock
  • SUPPLIER
  • In Stock
  • (Orders dispatched in 1 to 3 business days from Supplier)



(Orders dispatched in 1 to 3 business days from Supplier)

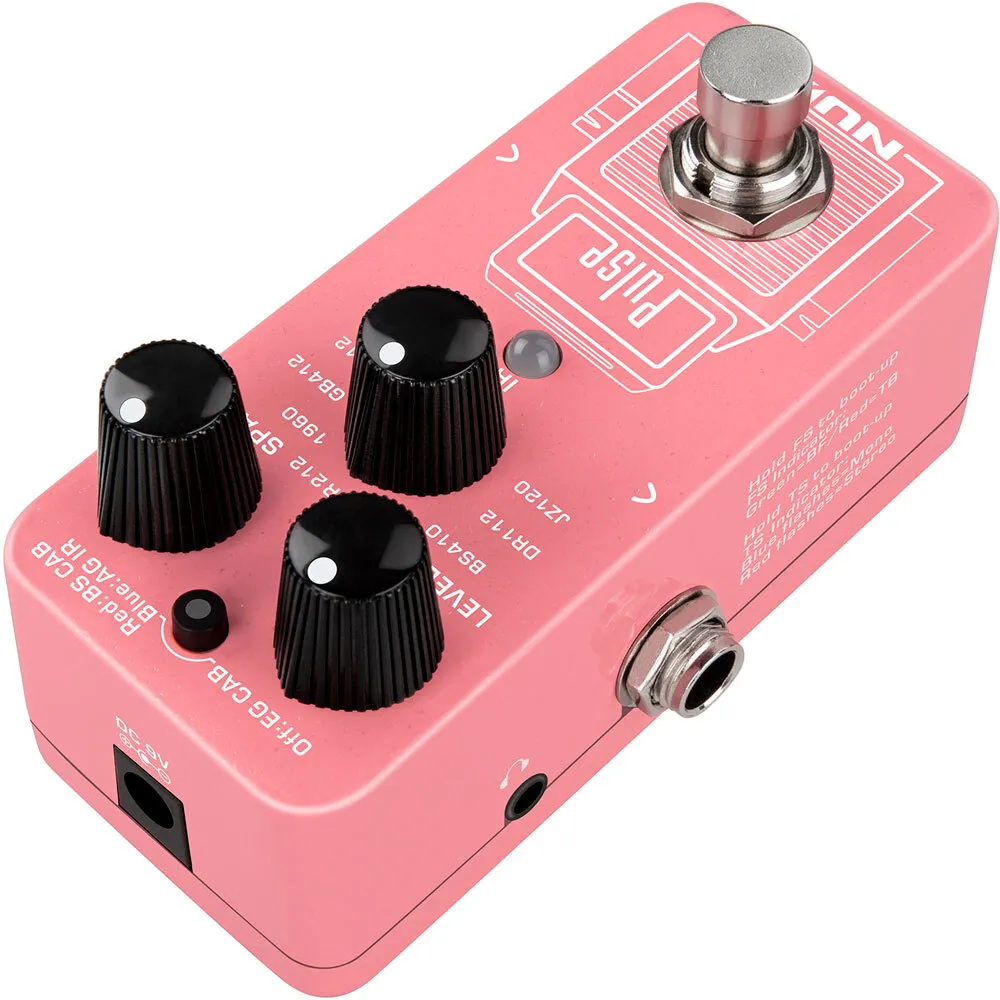

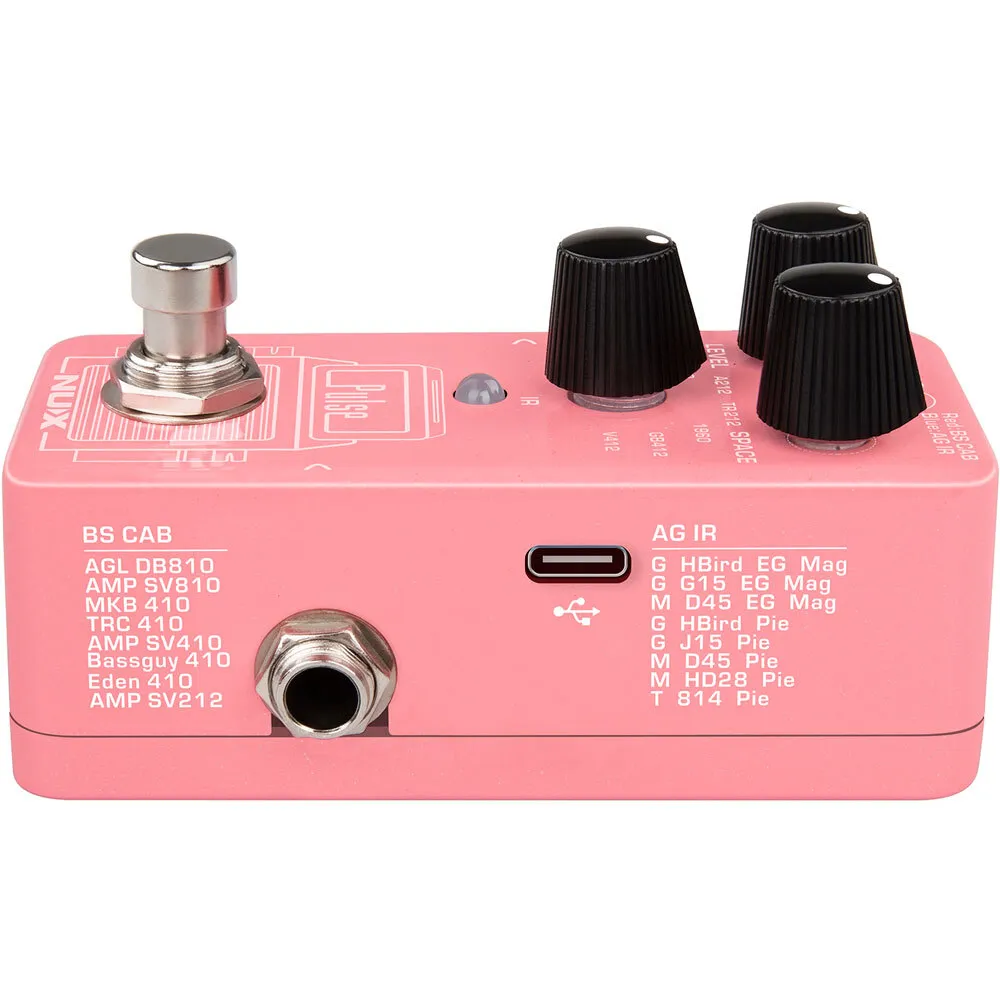

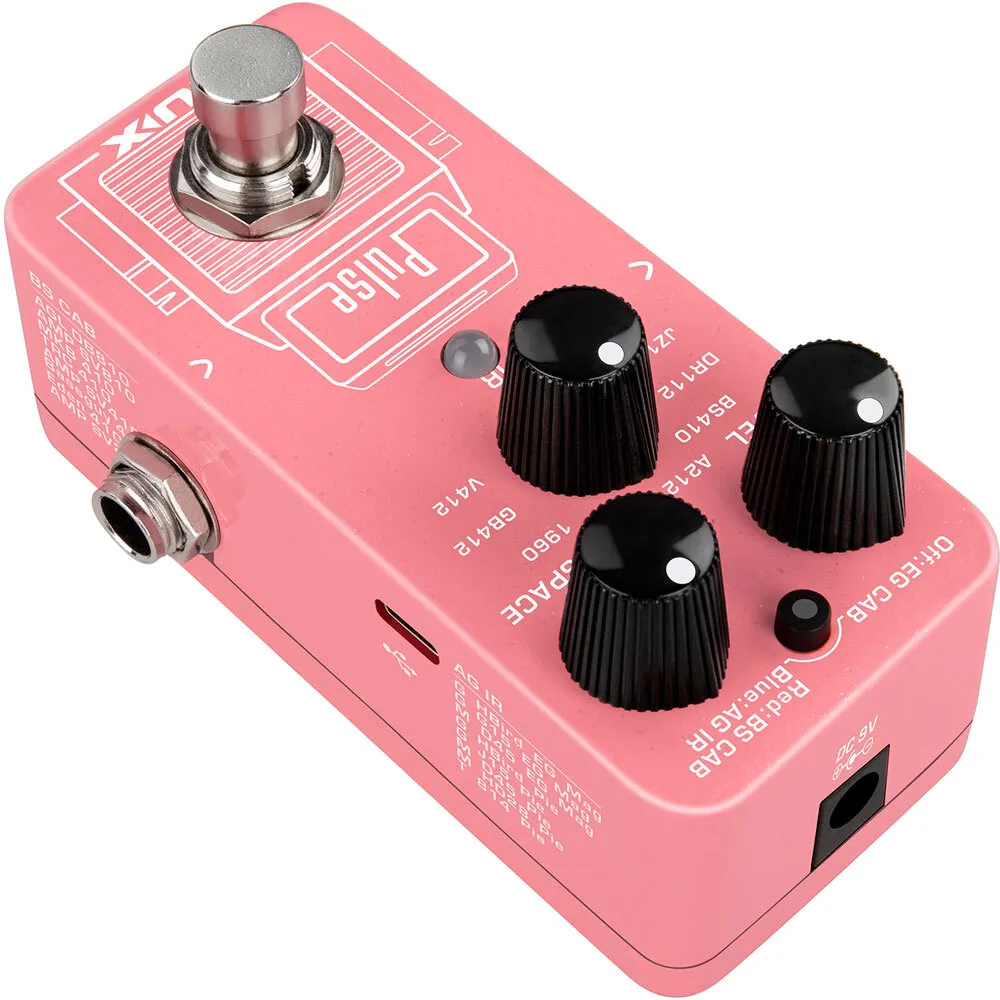

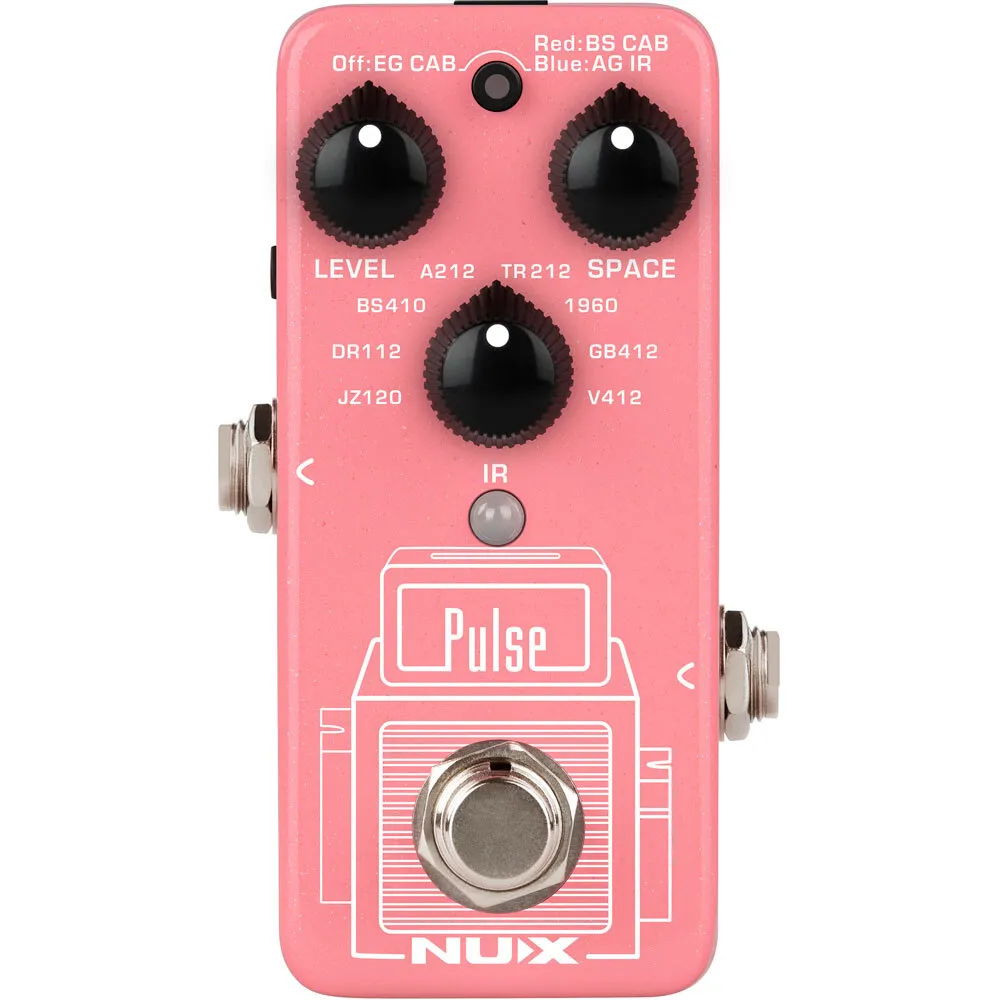

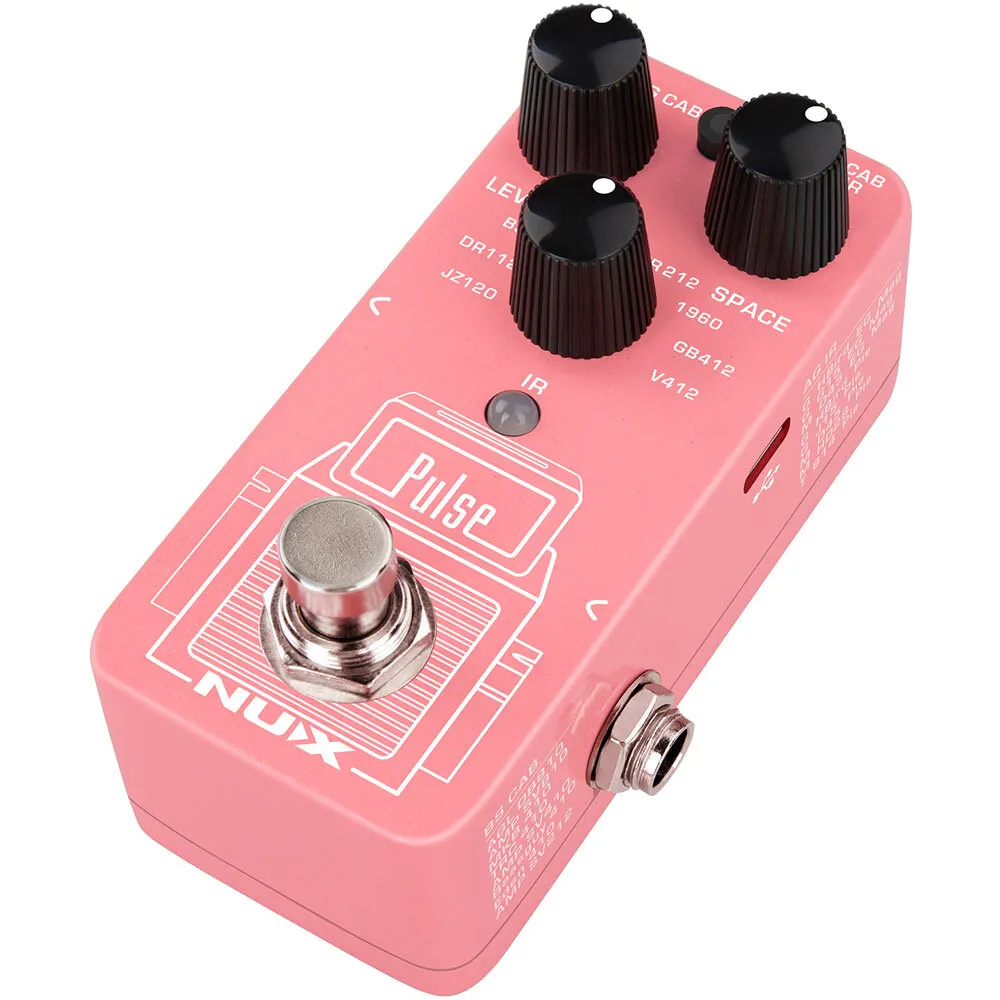

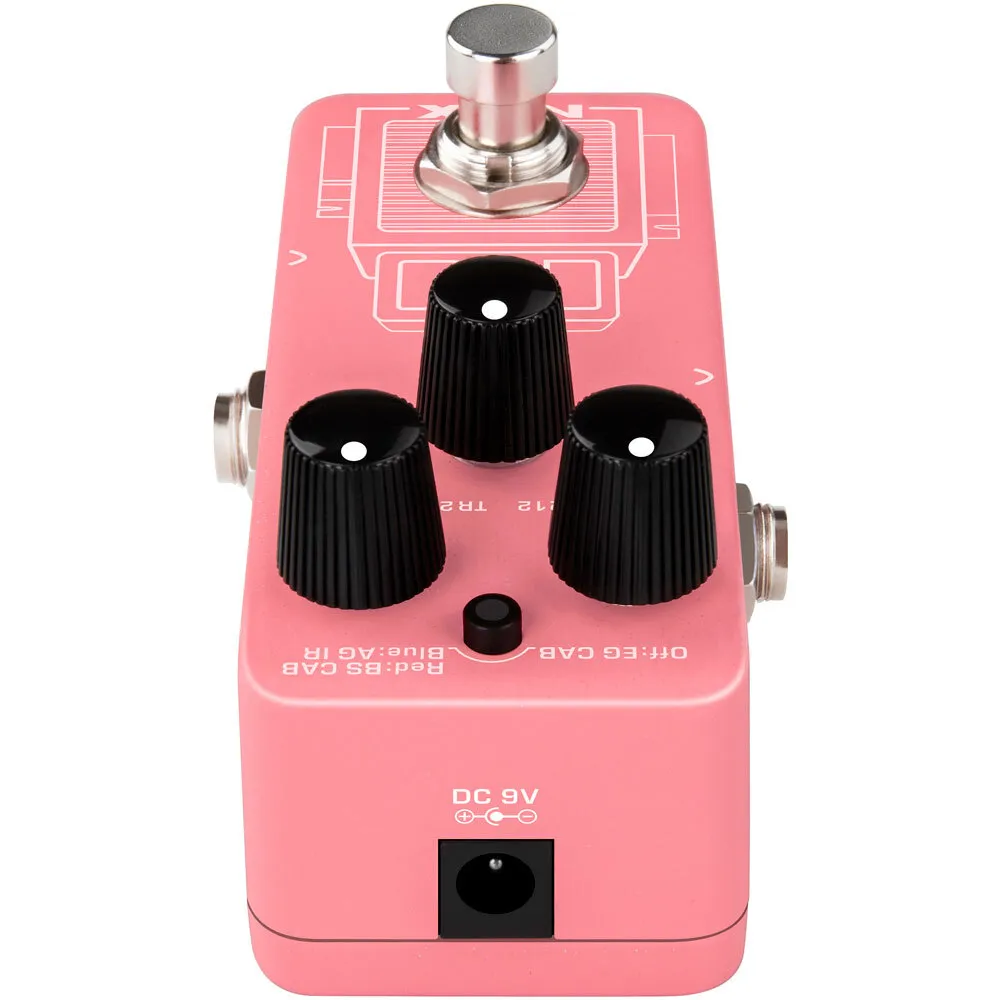

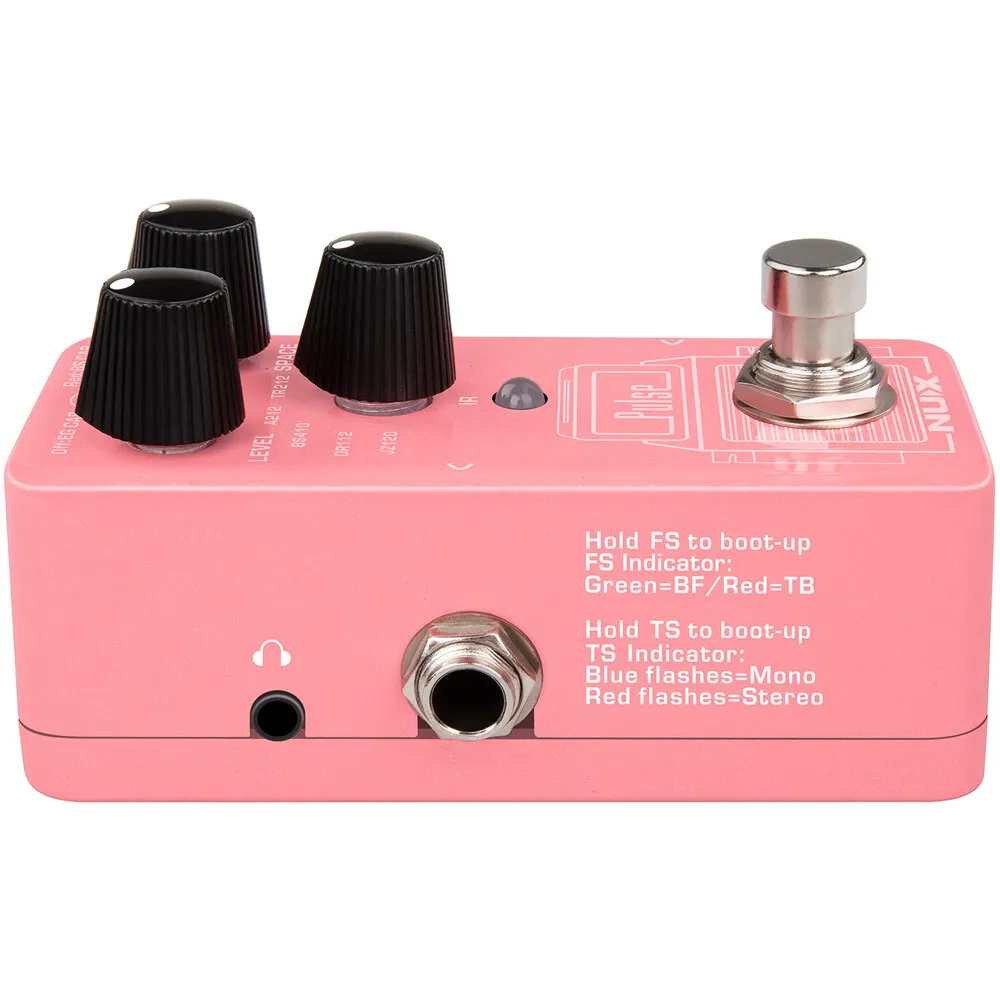

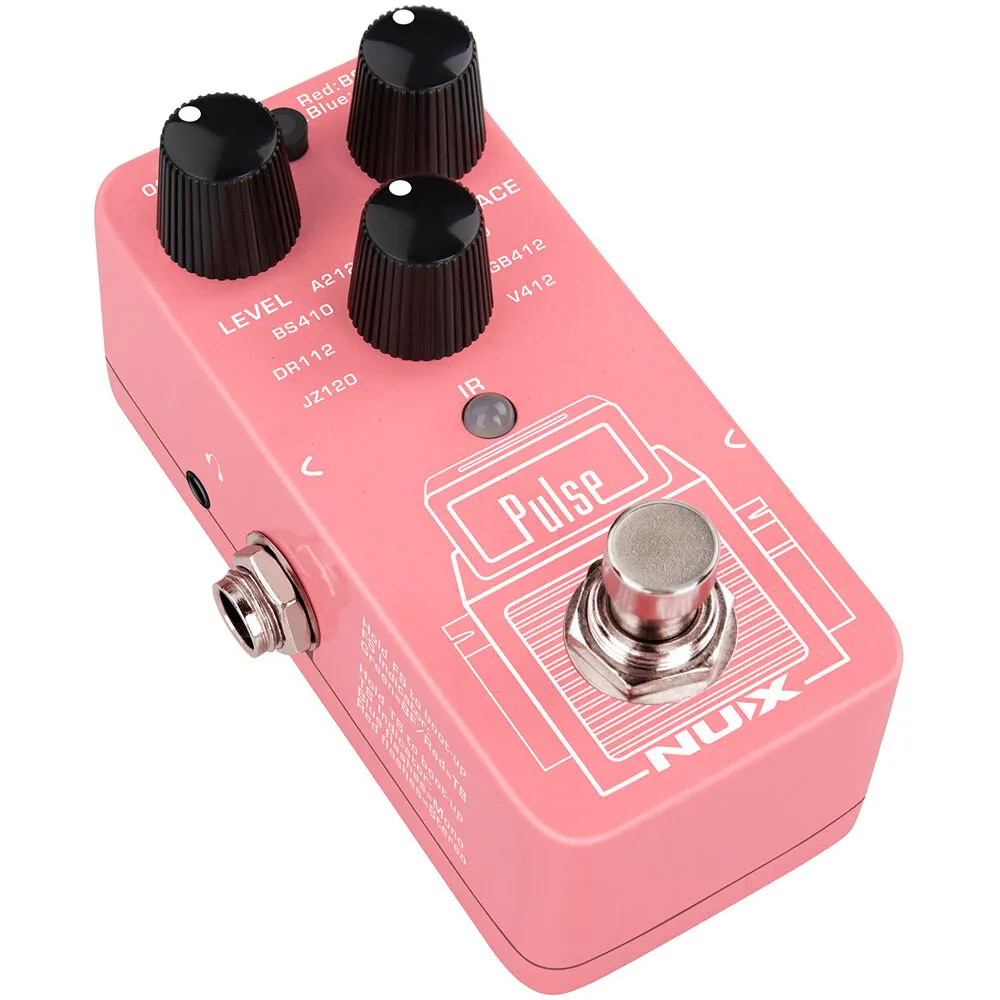

NU-X Mini Core Series "Pulse" IR Loader, Acoustic Guitar & Cabinet Simulator

Pulse (NSS-4) is a mini IR-Loader pedal with 3 different modes including EG CAB, BS CAB, and AG IR. You can switch the types by tapping the tap switch. Besides that, you can use Pulse as a silent practice tool (1/8" phone jack) in the end of your pedalboard and even as a USB recording interface onto DAW.

Ampless? No worry, Pulse IR loader is the compact solution!

EG CAB means electric guitar cabinet IRs. Pulse offers 8 guitar cab IRs:

  • JZ120 (Roland Jazz 120)
  • DR112 (Fender Deluxe Reverb)
  • BS410 (Fender Bassman 410)
  • A212 (VOX AC30 212)
  • TR212 (Fender Twin Reverb 212)
  • 1960 (Marshall 1960A 412)
  • GB412 (Celestion Greenback 412)
  • V412 (Celestion Vintage30 412)

BS CAB means bass cabinet IRs. Pulse offers 8 bass cab IRs:

  • AGL DB810 (Aguilar DB 810)
  • AMP SV810 (Ampeg SV810)
  • MKB 410 (Mark Bass 410)
  • TRC 410 (Trace Elliot 410)
  • AMP SV410 (Ampeg SV410 + Tweeter)
  • Bassguy 410 (Fender Bassman 410)
  • Eden 410 (EDEN 410)
  • AMP SV212 (Ampeg SV212

AG IR means acoustic guitar IRs. Pulse offers 8 acoustic guitar IRs:

  • G HBird EG Mag (Gibson Hummingbird for Electric Guitar Magnetic PU)
  • G J15 EG Mag (Gibson J15 for Electric Guitar Magnetic PU)
  • M D45 EG Mag (Martin D45 for Electric Guitar Magnetic PU)
  • G HBird Pie (Gibson Hummingbird for Acoustic Guitar Piezo under saddle PU)
  • G J15 Pie (Gibson J15 for Acoustic Guitar Piezo under saddle PU)
  • M D45 Pie (Martin D45 for Acoustic Guitar Piezo under saddle PU), M HD28 Pie (Martin HD28 for Acoustic Guitar
  • Piezo under saddle PU)
  • T 814 Pie(Taylor 814 for Acoustic Guitar Piezo under saddle PU)

EDIT SOFTWARE

  • You can download Pulse edit software on the product page. For the default slots, you can replace any 3rd party IRs into them.
  • Pulse editor will convert WAV format automatically.
  • You can setup the USB stream routing on Pulse editor.
  • For more operation tips and tutorials, you can search it on NUX EFX & Amplifier YouTube channel.
  • For MAC, there is no need for driver. For WIN, please visit the product page and click Support to download the related ASIO driver.

Features:

  • WAV format supports automatically. (through Pulse Editor)
  • 3 default IR types in the mini enclosure. (Total = 24slots)
  • Electric Guitar Cab IR: JZ120, DR112, BS410, A212, TR212, 1960, GB412, V412
  • Bass Guitar Cab IR: AGL DB810, AMP SV810, MKB 410, TRC 410, AMP SV410, Bassguy 410, Eden 410, AMP SV212
  • Acoustic Guitar IR: G HBird EG Mag, G J15 EG Mag, M D45 EG Mag, G HBird Pie, G J15 Pie, M D45 Pie, M HD28 Pie, T 814 Pie
  • 1024 samples real time calculation
  • True-bypass or Buffer-bypass
  • Supports Stereo
  • Low power consumption. (less than 100mA)
  • USB Audio Stream, Firmware Update
  • Pulse Editor for 3rd party IR loading, IR tweaking. (IR Level, Low Cut, High Cut)
  • Mini but mighty! It also supports Stereo input & output (Use 1/4" TRS plug, and choose Stereo mode)
  • The USB-C port is for firmware update. Connect USB cable to a PC and hold the footswitch to boot-up the device and to enter the DFU (Device Firmware Update) mode. Once connected you can do firmware updates using DFU updater software

Specifications:

  • Input Impedance: 1M ohms
  • Output Impedance: 10K
  • Dynamic Range: 103 dB
  • DSP Processing: 48KHz / 32-bit
  • A/D D/A Sampling Rate: 48KHz / 24-bit
  • Power: 9V DC (Negative tip, Optional ACD-006A adapter)
  • Current Draw: Less than 100mA
  • Dimensions: 94 x 51 x 53mm (L x W x H)
  • Weight: 175g
SKU NXNSS4
Brand NUX
