Yamaha DHR10 10" 2-Way Powered Bi-Amp Speaker

SKU: DHR10

WAS $849.00
RRP $1,049.00
NOW $749.00
SAVE 29%!
Sale Ends in
23:59 pm, 30 April 2024
Share:
  • GOLD COAST MUSIC
  • Only 2 Left!
  • SYDNEY WAREHOUSE
  • Out Of Stock
  • (Orders dispatched in 1 to 3 business days from Sydney)



In Stock






The DHR Series offers an ideal solution for anyone ready to step up their sound reinforcement game to a new level of professional quality, accuracy, and performance. Premium plywood cabinets finished in a tough polyurea coating provide durability not found on other loudspeakers in this class.

Each model in the series has been optimized to meet the demands of a variety of sound reinforcement applications, with a 10” model for fixed installation and utilities, a 12” model designed for use as a floor monitor, and a 15” version for FOH applications—all featuring custom transducers driven by DSP-equipped class-D power amplifiers to deliver stunning sound quality and clarity. Combined with practical features adapted for their specific applications, the series gives you the flexibility to choose the ideal speaker for a wide variety of sonic environments. Isn’t it time you audition DHR quality and performance to improve your sound?

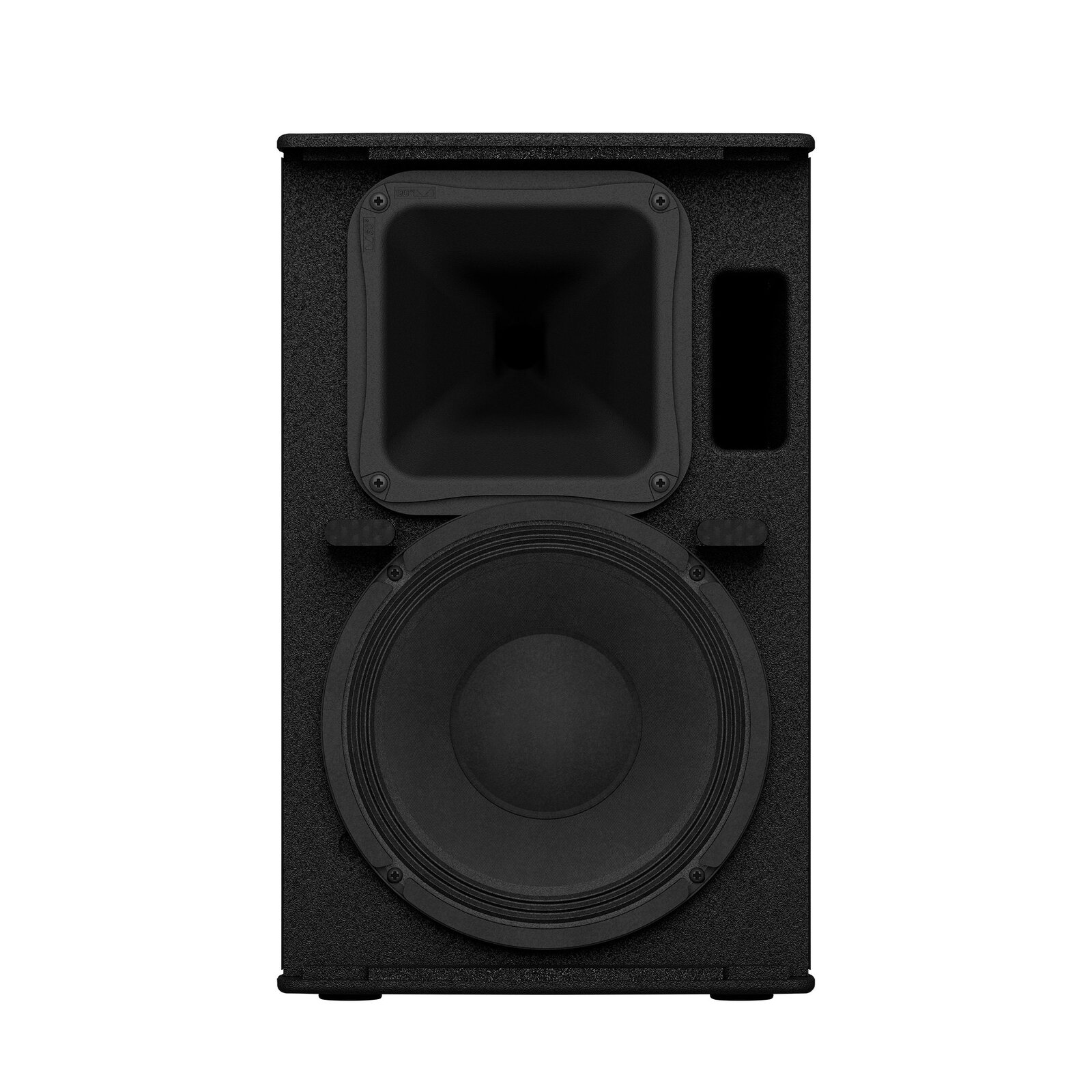

The DHR10 is a 2-way bi-amp powered loudspeaker, equipped with a 10-inch woofer and a 1.4-inch HF driver, and perfect for use in fixed installations. Combining a 700W amplifier module and high-performance DSP with the same high-grade plywood construction found on Yamaha’s high-end DZR Series, the DHR10 offers best-in-class sound quality and durability.

  • Featuring a plywood cabinet that delivers a clear sound with minimal vibration
  • Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
  • Compact appearance thanks to a 10-inch LF driver that provides excellent low frequency response
  • Can be installed in a horizontal or vertical configuration with a rotatable HF horn offering the flexibility needed for installation in a wide range of environments
  • Optional UB-DXRDHR10 U-bracket allows both for vertical or horizontal use
  • A pole socket for use on a stand
  • Rigging points for use with eye bolts
  • Proprietary FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion

SPECIFICATIONS

Speaker type: 2-way, Bi-amped Powered Speaker, Bass-reflex
Frequency range (-10dB): 52 Hz - 20 kHz
Coverage area: H90゚ x V60゚ (Rotatable)
Crossover: 1.9 kHz: FIR-X tuning™ (linear phase FIR filter)
Maximum Output Level (Measured peak, IEC noise@1m): 128 dB SPL
Components: LF: Diameter: 10" cone, Voice Coil: 2", Magnet: Ferrite, HF: Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite
Amplifier class: Class-D​​​​​​​
Dynamic Power Rating: 700 W (LF: 500 W, HF: 200 W) *1​​​​​​​
Continuous Power Rating: 325 W (LF: 260 W, HF: 65 W)​​​​​​​
Cooling: Fan cooling, 4 speeds​​​​​​​
Power consumption: 60 W (1/8power), 18 W (Idle)​​​​​​​
Power requirements: 100 V, 100-120 V, 220-240 V, 110/127/220 V (Brazil), 50/60 Hz
A/D D/A Converters: 24 bit 48 kHz Sampling​​​​​​​
Processors: HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF​​​​​​​

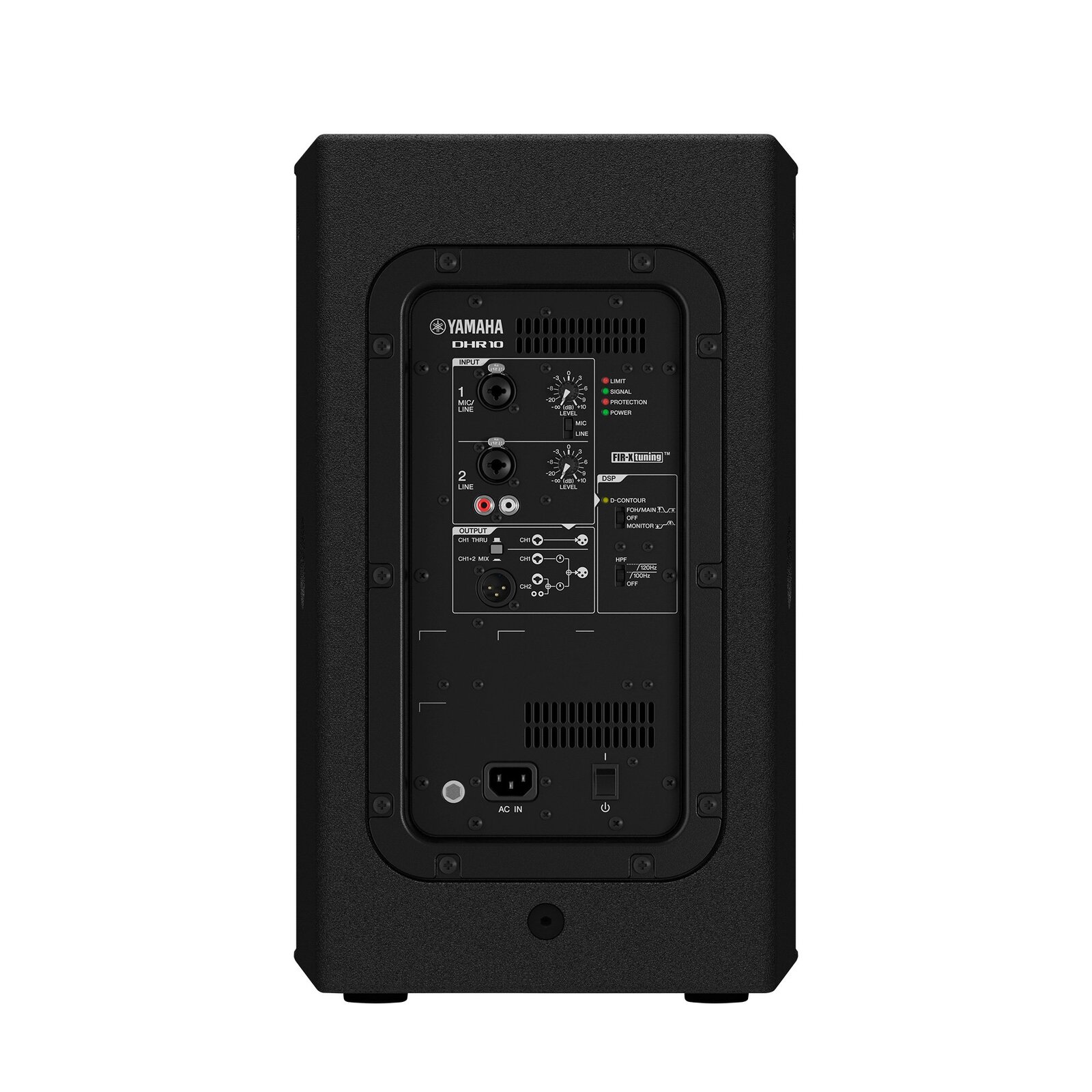

I/O connectors: INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)​​​​​​​
Cabinet material: Plywood​​​​​​​
Finish: Durable Polyurea Painting, Black
Handle: Top x1​​​​​​​
Pole socket: Φ35 mm x1 (Bottom)​​​​​​​
Rigging: Top x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts)
Dimensions: W: 305 mm (12.0"), H: 494 mm (19.5") (with rubber feet), D: 300 mm (11.8")​​​​​​​
Net weight: 15.0 kg (33.1 lbs)​​​​​​​
Options: U-bracket: UB-DXRDHR10

SKU DHR10
Barcode # 4957812662178
Brand Yamaha
