Yamaha DZR10 10" Powered PA Speaker 2000 Watt

SKU: DZR10

$1,999.00
RRP $2,499.00
SAVE $500.00
Share:
  • GOLD COAST MUSIC
  • Out Of Stock
  • SYDNEY WAREHOUSE
  • Out Of Stock
  • (Orders dispatched in 1 to 3 business days from Sydney)



The DZR10 is 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive 137dB SPL thanks to the high power 2000W Class-D amplifier module. The 10" LF driver and 2" tweeter are housed in a durable plywood cabinet.


The DZR10 is 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive 137dB SPL thanks to the high power 2000W Class-D amplifier module. With best-in-class SPL performance, sophisticated DSP processing, and unrivaled low-frequency sound reproduction, the DZR10 realises a truly professional sound delivered with a level of power that belies its compact, lightweight design. The 10" LF driver and 2" tweeter are housed in a durable plywood cabinet, which includes integrated M10/M8 rigging points for suspended applications. Additionally, the rotatable horn and variety of U-bracket options (UB-DZR) for rigging allow for very flexible setup and speaker placement.

  • 2-way powered loudspeaker with a 2” HF and a 10" LF
  • Maximum 137dB SPL and 44Hz-20kHz frequency range is ideal for today’s audio engineering demands
  • High power 2000W Class-D amplifier module
  • 96kHz DSP and FIR filter for true high-resolution sound with super low latency
  • Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion

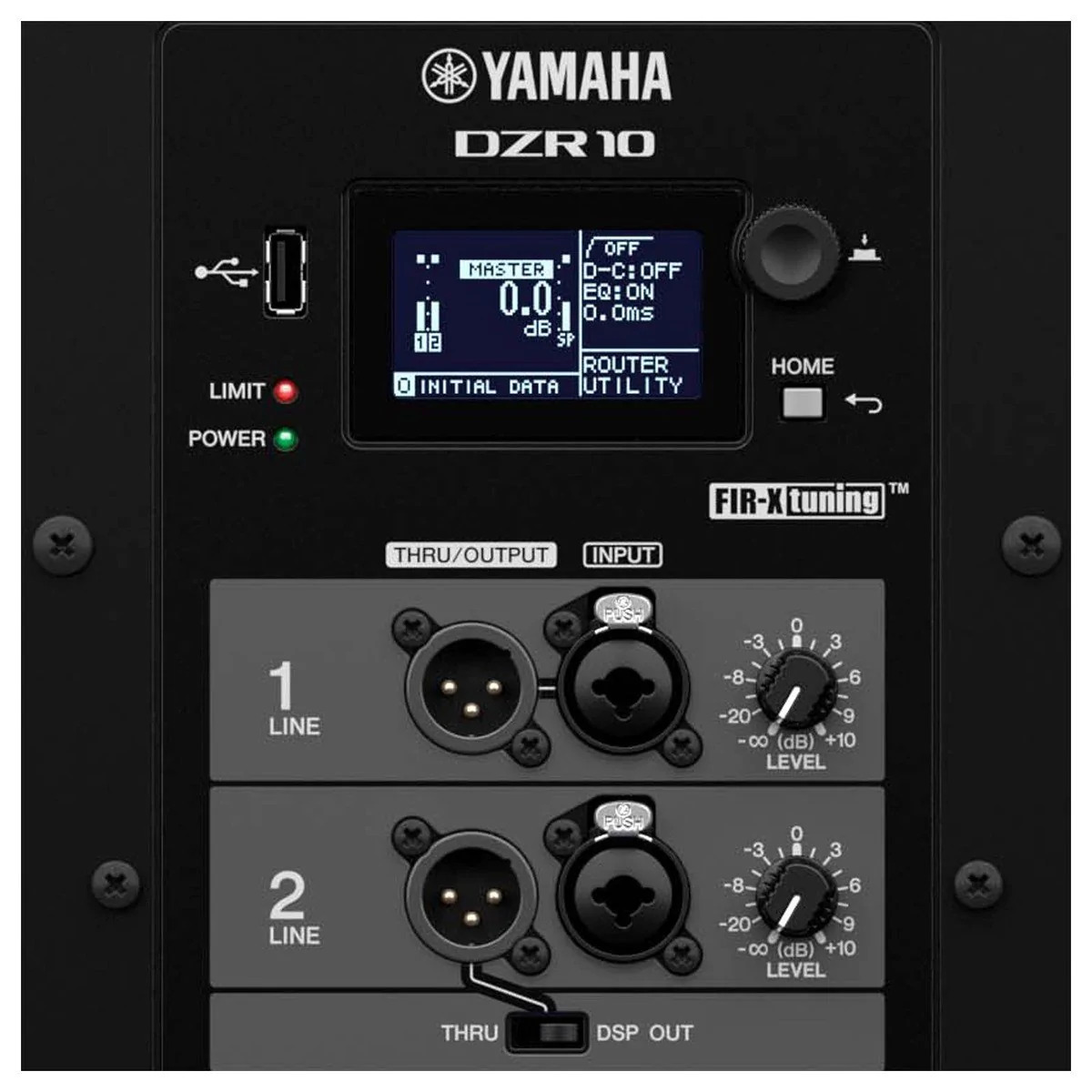

  • Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
  • D-Contour and highly reliable protection circuits
  • Floor monitoring setting
  • Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
  • Optional speaker cover (SPCVR-DZR10)
  • Rotatable horn and variety of U-bracket options (UB-DZR) for rigging allow for very flexible setup and speaker placement

Model DZR10
Speaker type 2-way/Bi-amped Powered Speaker/Bass-reflex
Frequency range (-10dB) 44Hz - 20kHz
Coverage area H90゚ x V60゚ (Rotatable)
Low Frequency 10" Cone 3" Voice Coil/Neodymium magnet
Mid Frequency N/A
High Frequency 2" Voice Coil/1" Throat Compression Driver/Titanium diaphragm/Neodymium magnet
Crossover 1.8kHz (FIR-X)
Internal Sampling frequency rate  96kHz and FIR Filter
A/D D/A Converters 96kHz AD/DA
Maximum output level (1m; on axis) 137dB SPL *1
Dynamic Power 2000W (LF:1000W MF/HF: 1000W) *2
Continuous Power 1300W (LF: 920W MF/HF: 380W)
Analog I/O Analog IN: Combo x2/Line level (Maximum +24dBu)/Input impedance 20kΩ/Analog OUT: XLR3-32 x2/CH1: THRU (fix)/CH2: THRU or DSP OUT
Other I/O USB 2.0 Host 5V 500mA for USB memory DATA storage/load
AC I/O IEC AC inlet x1 (V-Lock)
Amplifier class Class-D
Cooling Fan cooling/Variable speeds
Power consumption 45W (Idle)/150W (1/8)
Handle Aluminium die-cast/Top x1/Side x1
Rigging M10 x8/M8 x2
Width 315 mm (12.4")
Height 537 mm (21.1") (with rubber feet)
Depth 345 mm (13.6")
Net weight 17.9kg (39.5lbs)
Options U-bracket: UB-DZR10H/V Cover: SPCVR-DZR10
Other Features Enclosure Material/Finish/Color: Plywood/Durable Polyurea Painting/Black
Floor Monitor Angle 50°
Pole socket Φ35 mm x2 (0° or -7°)
SKU DZR10
Barcode # 4957812623674
Brand Yamaha
