Yamaha DZR12 12" Powered PA Speaker 2000 Watt

SKU: DZR12

$2,159.00
RRP $2,699.00
SAVE $540.00
Share:
  • GOLD COAST MUSIC
  • Out Of Stock
  • SYDNEY WAREHOUSE
  • Out Of Stock
  • (Orders dispatched in 1 to 3 business days from Sydney)



The DZR12 is 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive 139dB SPL thanks to the high power 2000W Class-D amplifier module. The 12" LF driver and 2" tweeter are housed in a durable plywood cabinet.


The DZR12 is 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive 139dB SPL thanks to the high power 2000W Class-D amplifier module. With best-in-class SPL performance, sophisticated DSP processing, and unrivaled low-frequency sound reproduction, the DZR12 realises a truly professional sound delivered with a level of power that belies its compact, lightweight design. The 12" LF driver and 2" tweeter are housed in a durable plywood cabinet, which includes integrated M10 rigging points for suspended applications. Additionally, the rotatable horn and variety of U-bracket options (UB-DZR) for rigging allow for very flexible setup and speaker placement.

  • 2-way powered loudspeaker with a 2” HF and a 12" LF
  • Maximum 139dB SPL and 39Hz-20kHz frequency range is ideal for today’s sound engineering demands
  • High power 2000W Class-D amplifier module
  • 96kHz DSP and FIR filter for true high-resolution sound with super low latency
  • Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
  • Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
  • D-Contour and highly reliable protection circuits
  • Floor monitoring setting enables mirroring configuration
  • Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
  • Optional speaker cover (SPCVR-DZR12)
  • Rotatable horn and variety of U-bracket options (UB-DZR) for rigging allow for very flexible setup and speaker placement

Model DZR12
Speaker type 2-way/Bi-amped Powered Speaker/Bass-reflex
Frequency range (-10dB) 39Hz - 20kHz
Coverage area H90゚ x V60゚ (Rotatable)

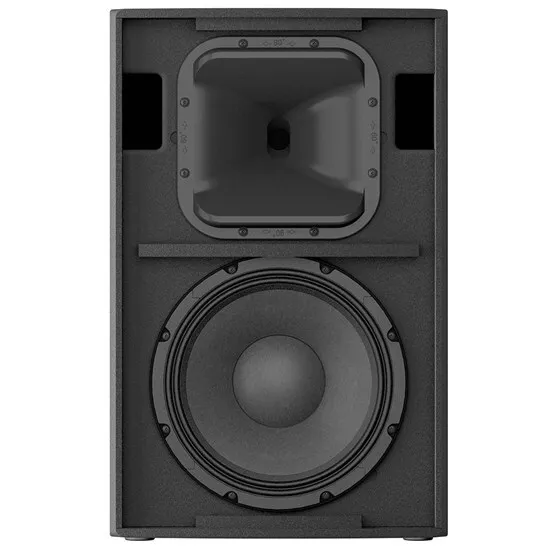

Low Frequency 12" Cone, 3" Voice Coil, Neodymium magnet
Mid Frequency N/A
High Frequency 2" Voice Coil/1" Throat Compression Driver/Titanium diaphragm/Neodymium magnet
Crossover 1.8kHz (FIR-X)
Internal Sampling frequency rate  96kHz and FIR Filter
A/D D/A Converters 96kHz AD/DA
Maximum output level (1m; on axis) 139dB SPL
Dynamic Power 2000W (LF:1000W MF/HF: 1000W) *2
Continuous Power 1300W (LF: 920W MF/HF: 380W)

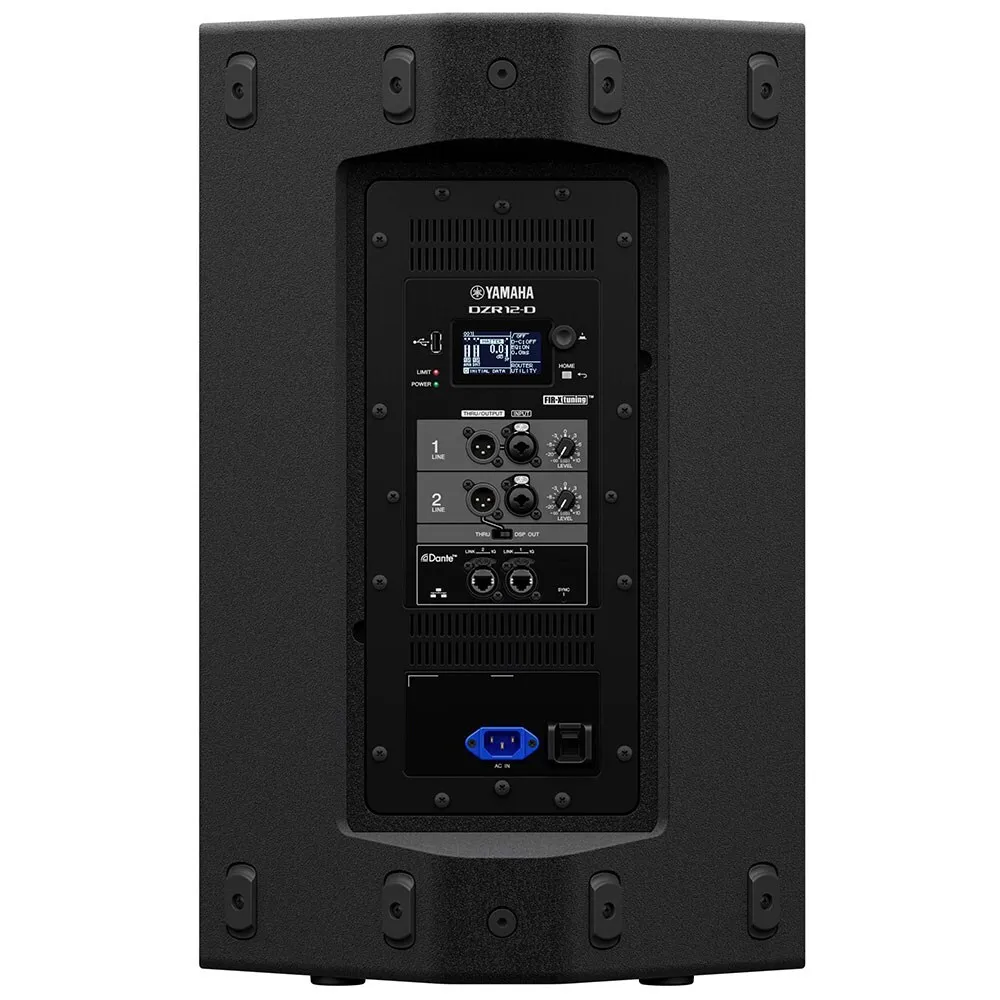

Analog I/O Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
Other I/O USB2.0 Host 5V 500mA for USB memory DATA storage/load
AC I/O IEC AC inlet x1 (V-Lock)
Amplifier class Class-D
Cooling Fan cooling/Variable speeds
Power consumption 45W (Idle)/150W (1/8)
Handle Aluminium die-cast/Top x1/Side x1
Rigging M10 x12
Width 410 mm (16.1")
Height 646 mm (25.4") (with rubber feet)
Depth 394 mm (15.5")
Net weight 21.4kg (47.2lbs)
Options U-bracket: UB-DZR12H/V, Cover: SPCVR-DZR12
Other Features Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black

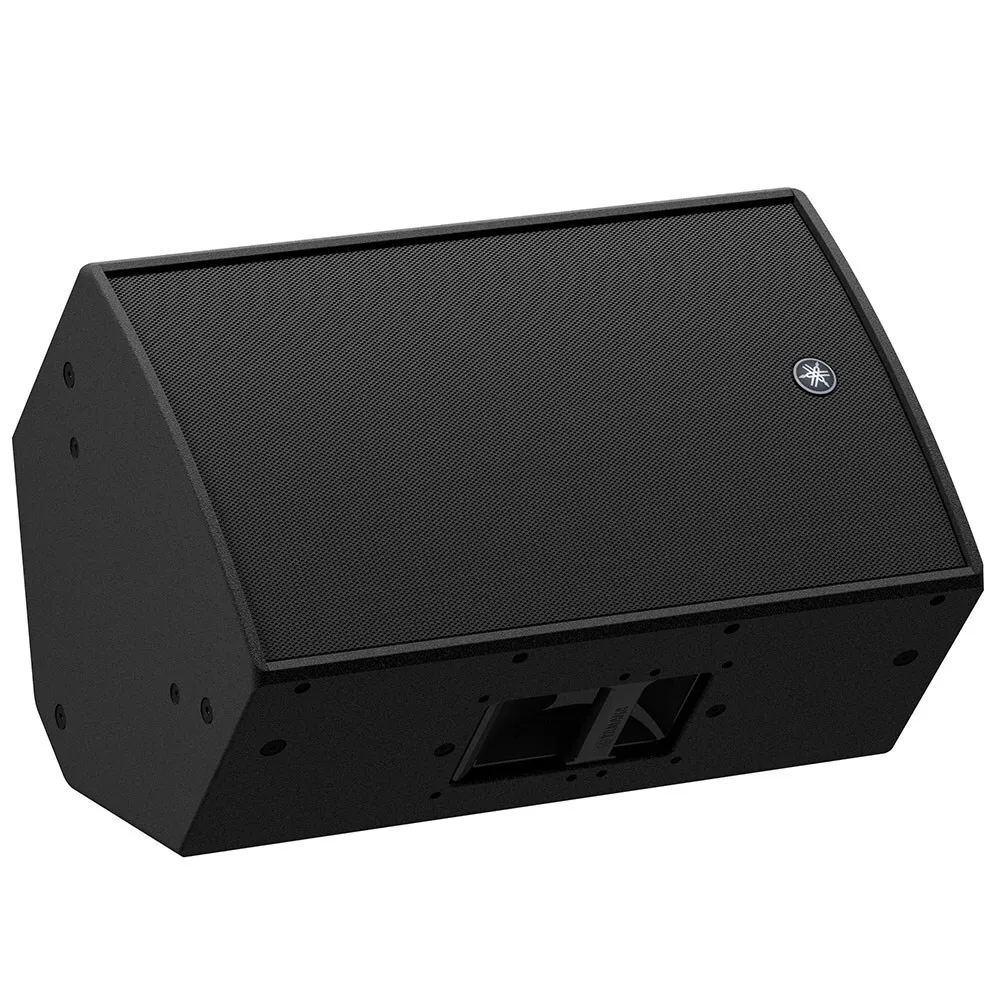

Floor Monitor Angle 50° Symmetrical
Pole socket Φ35 mm x2 (0° or -7°)
SKU DZR12
Barcode # 4957812623582
Brand Yamaha
