Yamaha TF3 24 Channel Digital Mixing Console

SKU: ZG70960

$4,349.00
RRP $4,899.00
SAVE $550.00
Share:
  • GOLD COAST MUSIC
  • Out Of Stock
  • SYDNEY WAREHOUSE
  • 5+ In Stock
  • (Orders dispatched in 1 to 3 business days from Sydney)



(Orders dispatched in 1 to 3 business days from Sydney)

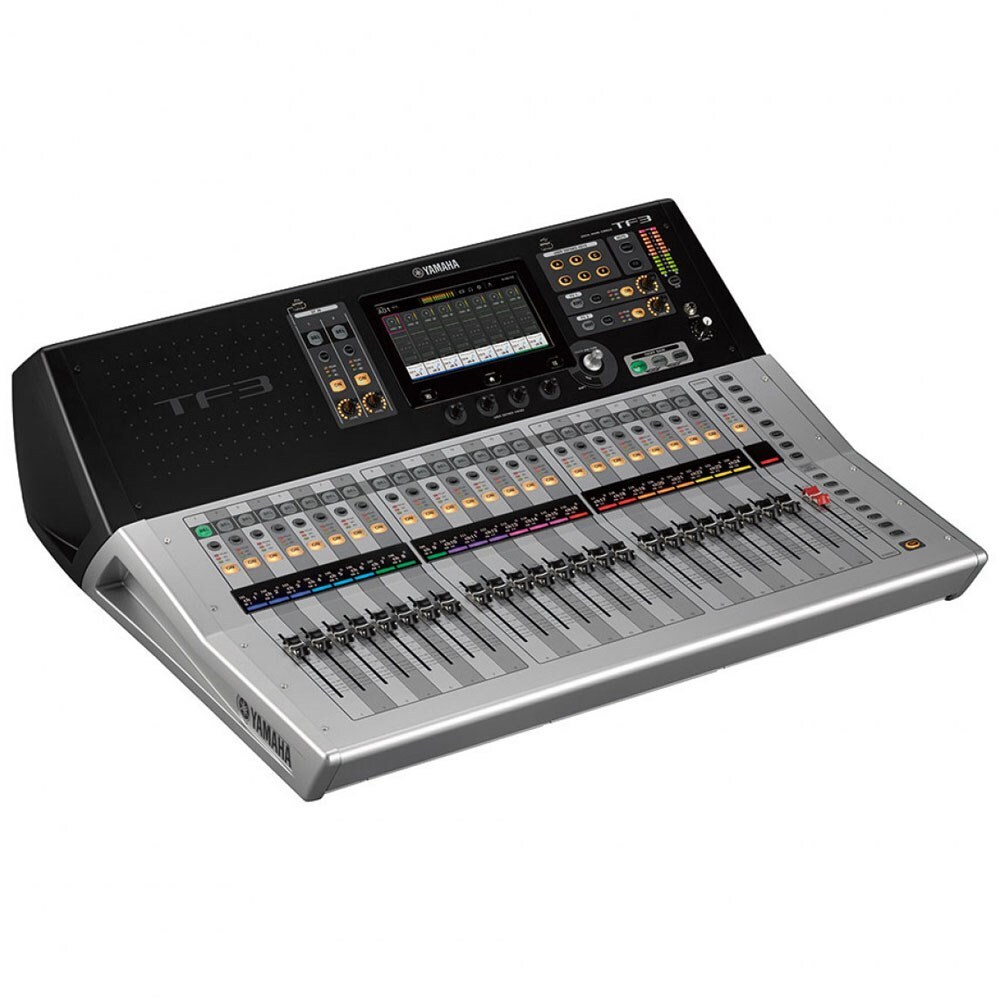

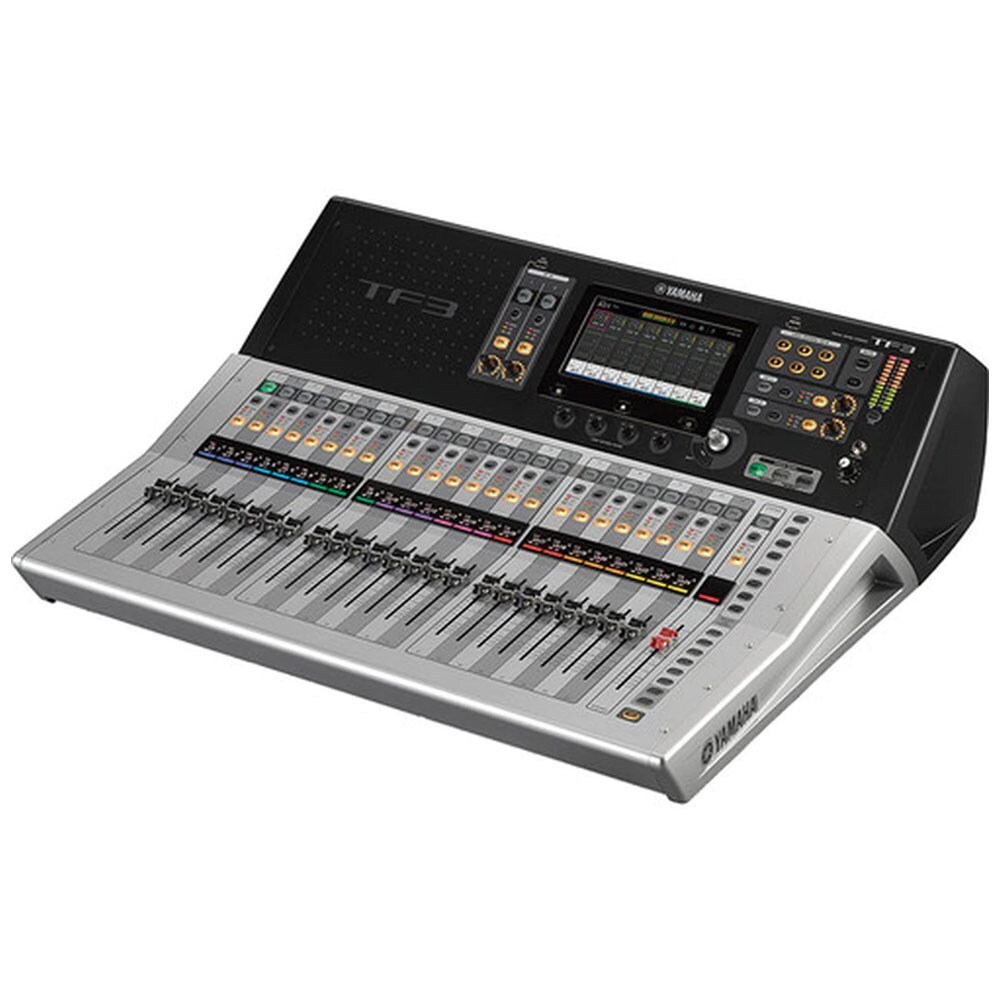

The TF3 digital mixing console takes live sound reinforcement to a new level of refinement with TouchFlow Operation, 24 recallable D-PRE preamplifiers, advanced processing, and much more.






Yamaha TF3 24 Channel Digital Mixing Console

Yamaha has always made it a mission to stay in touch with the needs of sound engineers world wide. The outcome is evident in the success of the recent CL and QL series digital mixing consoles, and the flagship RIVAGE PM10. The key to success has always been in supporting the user’s creativity. Creativity is most effective when unrestricted, and now Yamaha has created a new digital mixing console that gives the user’s intuition even freer rein. TouchFlow Operation™ introduced in the TF series consoles allows the user to respond to the music and artists on stage with unprecedented speed and freedom, taking live sound reinforcement to a new level of refinement. With the TouchFlow Operation interface optimized for touch panel control, experienced engin eers as well as newcomers to the field will find it easier than ever to achieve the ideal mix. Recallable D-PRE™ preamplifiers support sound quality that will satisfy the most discerning pro fessional ears, while advanced live recording features and seamless operation with high-performance I/O racks give these compact digital mixers capabilities that make them outstanding choices for a wide range of applications.

TouchFlow Operation™ – Smooth, Natural Control Flow Yamaha digital consoles have always been designed with input from leading engineers worldwide to ensure that the most efficient, intuitive operation is achieved. The highly regarded Selected Channel and Centralogic™ interfaces attest to the success of that approach. The TF series combines Yamaha know-how with new input from the field and the latest touch-screen technology to deliver an evolved experience in console operation. Smooth setup and operation, practical presets and scenes, refined design, and software applications that integrate seamlessly with the entire system: these elements comprise TouchFlow Operation, a new concept in console interfaces that offers unprecedented comfort and convenience in small consoles, for a wide range of users and applications.

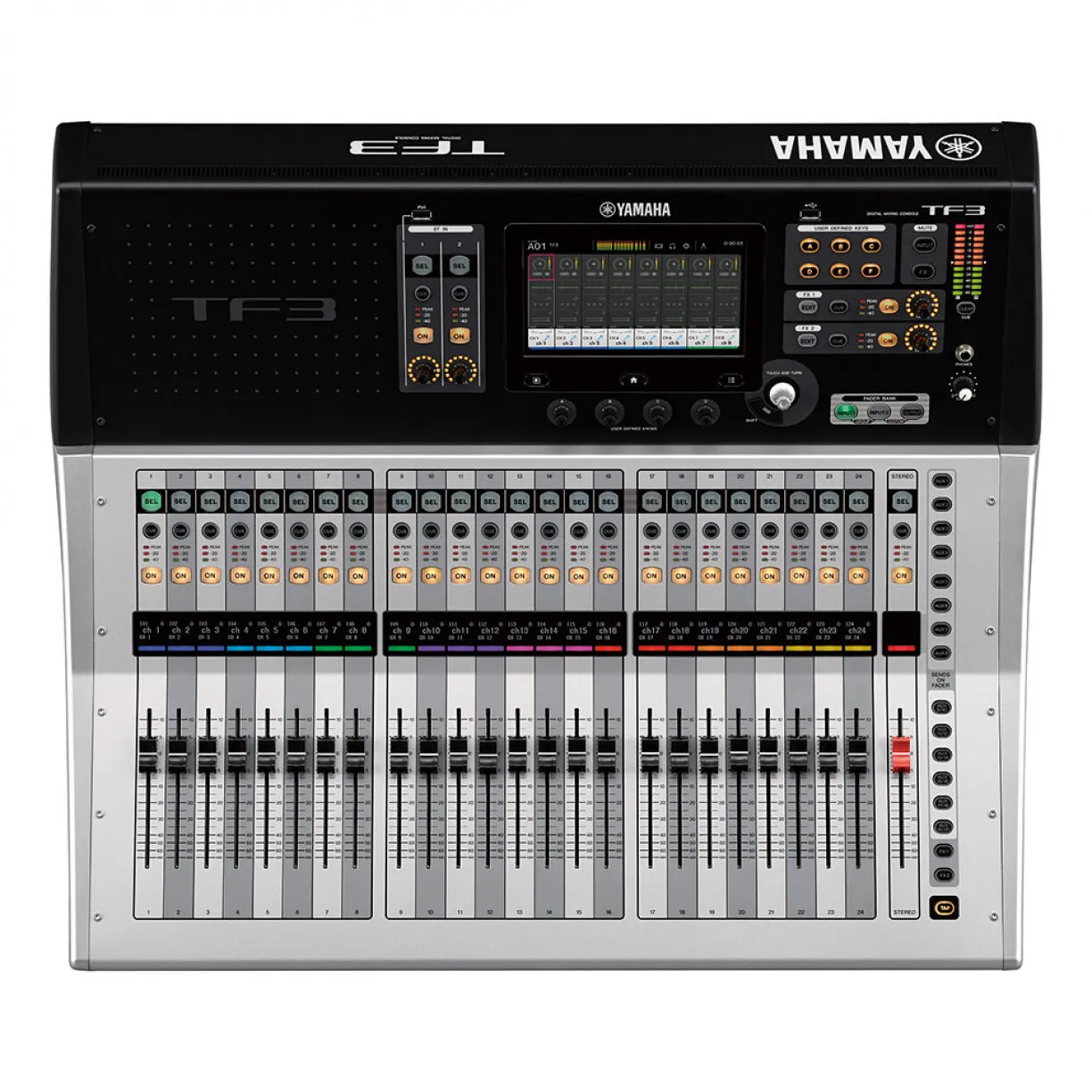

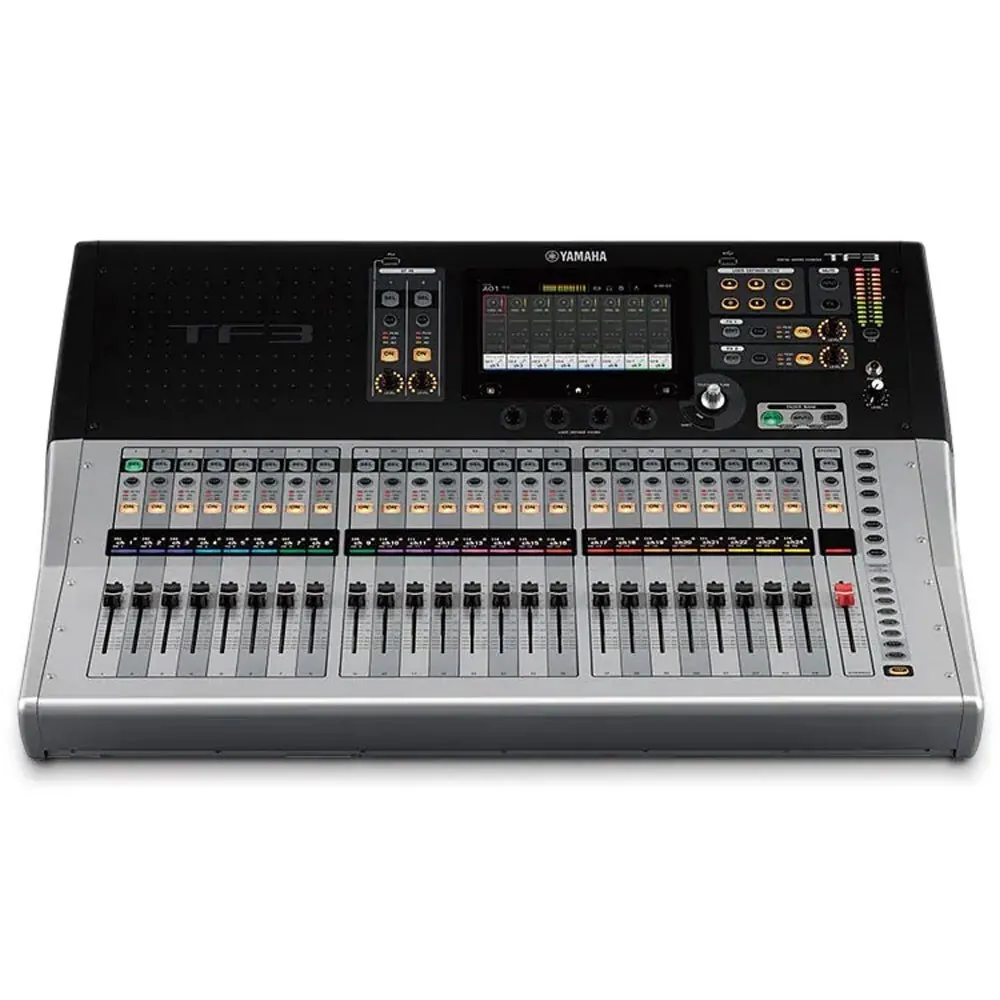

  • 25 motor faders (24 channels + 1 master)
  • 48 input mixing channels (40 mono + 2 stereo + 2 return)
  • 20 Aux (8 mono + 6 stereo) + Stereo + Sub buses
  • 8 DCA groups with Roll-out

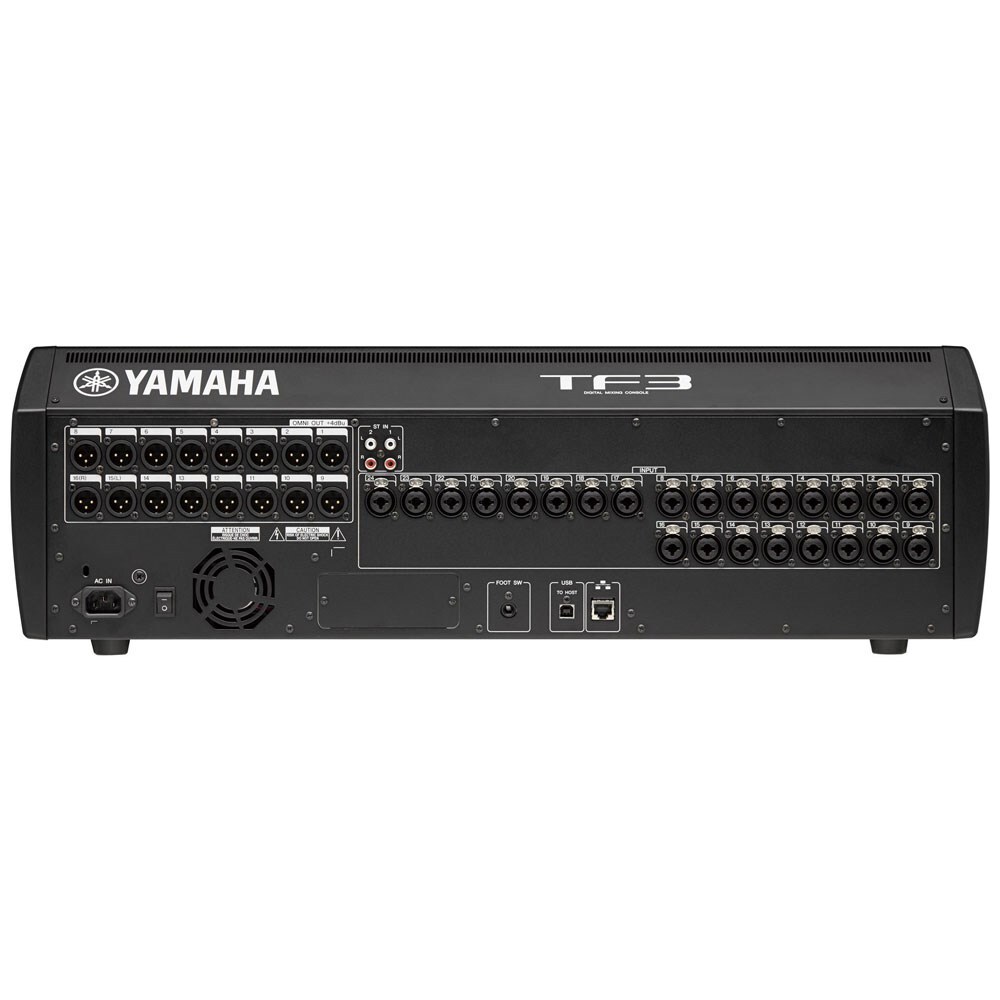

  • 24 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs

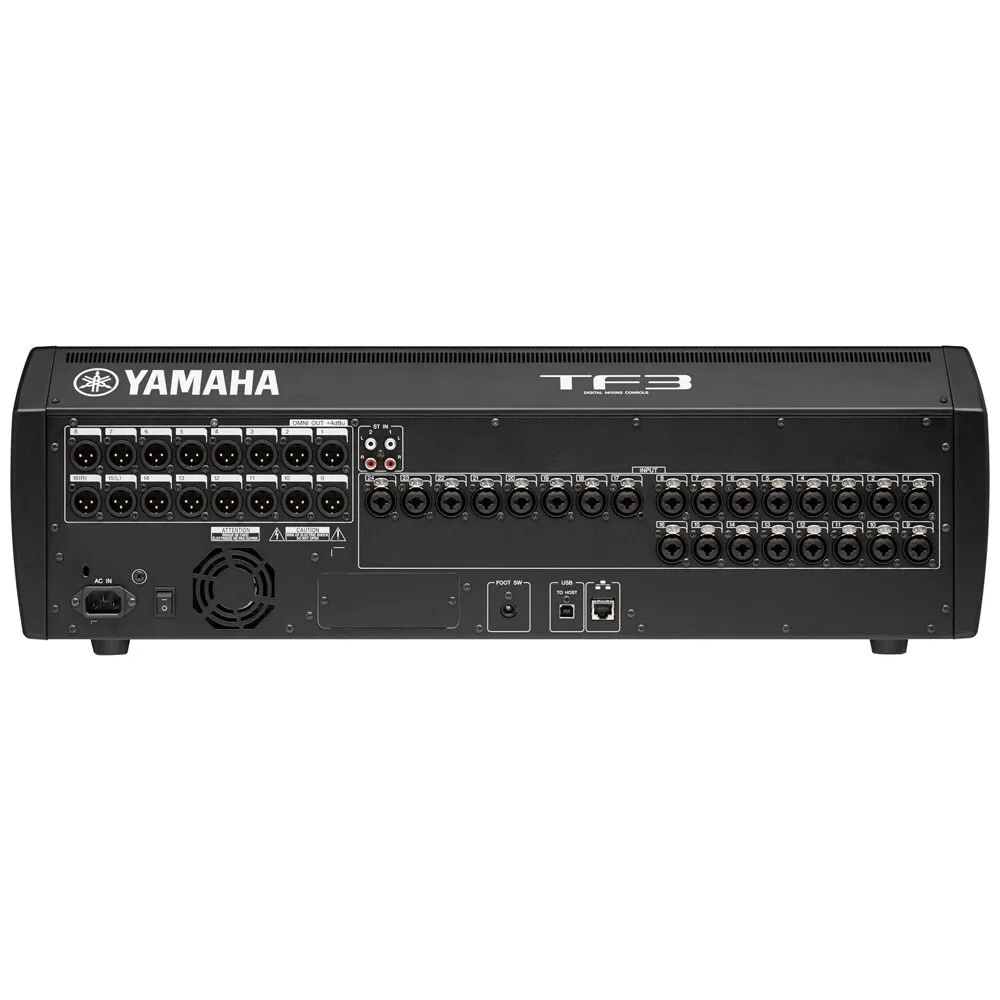

  • 16 analog XLR outputs
  • 34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device
  • 1 expansion slot for NY64-D audio interface card
FADER CONFIGURATION 24 + 1 (Master)
MIXING CAPACITY INPUT CHANNELS 48 (40 mono + 2 stereo + 2 return)
AUX BUSES 20 (8 mono + 6 stereo)
STEREO BUSES 1
SUB BUSES 1
INPUT CHANNEL FUNCTIONS 8 DCA Groups
I/O INPUTS 24 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin)
OUTPUTS 16 (XLR)
EXPANSION SLOTS 1
ON-BOARD PROCESSORS DSP 8 Effects + 10 GEQ
USB 34x34 USB Audio Interface, 2-track recording via USB Storage Device

GENERAL SPECIFICATIONS

SAMPLING FREQUENCY RATE INTERNAL 48 kHz
SIGNAL DELAY Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz
FADER 100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders
TOTAL HARMONIC DISTORTION Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz)
FREQUENCY RESPONSE +0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT
DYNAMIC RANGE 110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min.
HUM & NOISE LEVEL EQUIVALENT INPUT NOISE –128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)
RESIDUAL OUTPUT NOISE –85 dBu, ST master off (Measured with an A-Weight filter)
CROSSTALK –100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min.
POWER REQUIREMENTS 100–240 V 50/60 Hz
POWER CONSUMPTION 110 W
DIMENSIONS W 716 mm (28.2in)
H 225 mm (8.9in)
D 599 mm (23.6in)
NET WEIGHT 17.0 kg (37.5lb)
ACCESSORIES Quick Guide, Power Cord, CUBASE AI download information
OPTIONS Expansion Card, Foot Switch (FC5)
OTHERS Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C

ANALOG INPUT CHARACTERISTICS

INPUT TERMINALS GAIN LOAD
IMPEDANCE
FOR USE WITH
NOMINAL
INPUT LEVEL CONNECTOR BALANCED /
UNBALANCED
SENSITIVITY*1 NOMINAL MAX. BEFORE CLIP
INPUT1-24 +66dB 7.5KΩ 50-600Ω Mics
or 600Ω Lines
-82dBu (61.6V) -62dBu (0.616mV) -42dBu (6.16mV) Combo Jack (XLR-3-31 type *2
or TRS phone *3)
Balanced
-6dB -10dBu (245mV) +10dBu (2.45V) +30dBu (24.5V)
ST IN 1,2 10kΩ 600Ω Lines -30dBV (31.6V) -10dBV (316mV) +10dBV (3.16V) RCA Pin Jack Unbalanced

*1. Sensitivity is the lowest level that will produce an output of +4dBu (1.23V) or the nominal output level when the unit is set to maximum gain. (All faders and level controls are at maximum position.)
*2. 1: GND, 2: HOT, 3: COLD
*3. Tip: HOT, Ring: COLD, Sleeve: GND
*In these specifications, 0dBu = 0.775Vrms.
*+48V DC (phantom power) can be supplied to INPUT XLR type connectors via each individual software controlled switch.

ANALOG OUTPUT CHARACTERISTICS

OUTPUT TERMINALS SOURCE
IMPEDANCE
FOR USE WITH
NOMINAL
GAIN SW OUTPUT LEVEL CONNECTOR BALANCED /
UNBALANCED
NOMINAL MAX. BEFORE CLIP
OMNI OUT 1-16 75Ω 600Ω Lines “+24dBu” position (default)

+4dBu (1.23 V) +24dBu (12.3 V) XLR-3-32 type *1 Balanced
PHONES *3 100Ω 40Ω Phones 3mW 75mW Stereo Phone Jack (TRS) *2 Unbalanced

*1.1: GND,2: HOT, 3: COLD
*2 Tip: LEFT, Ring: RIGHT, Sleeve: GND
*3 The position of the level control is lowered by 16dB from the maximum.
*In these specifications, 0dBu = 0.775Vrms.
*All output DA converters are 24bit, 128times oversampling.

DIGITAL INPUT/OUTPUT SPECIFICATIONS

TERMINALS FORMAT DATA LENGTH AUDIO CONNECTOR
USB (TO HOST) USB 24bit 34ch input / 34ch output, PCM USB (B type)
iPad USB Playback: MP3 or WAV file data / Record: WAV file data USB (A type)



CONTROL I/O SPECIFICATIONS

TERMINALS FORMAT LEVEL CONNECTOR
NETWORK IEEE802.3 10BASE-T/100Base-TX RJ-45
FOOT SW TS Phone
