Eikon EKJH Wireless Headset Microphone System 512-541 Mhz

SKU: EKJH

$159.00
RRP $179.00
SAVE $20.00
Share:
  • IN STORE
  • Out Of Stock
  • SUPPLIER
  • Out Of Stock
  • (Orders dispatched in 1 to 3 business days from Supplier)






Eikon EKJH Wireless Headset Microphone System 512-541 Mhz

The EKJ&H is a quartz-controlled UHF headset wireless microphone system that provides reliable, high-quality signal transmission.

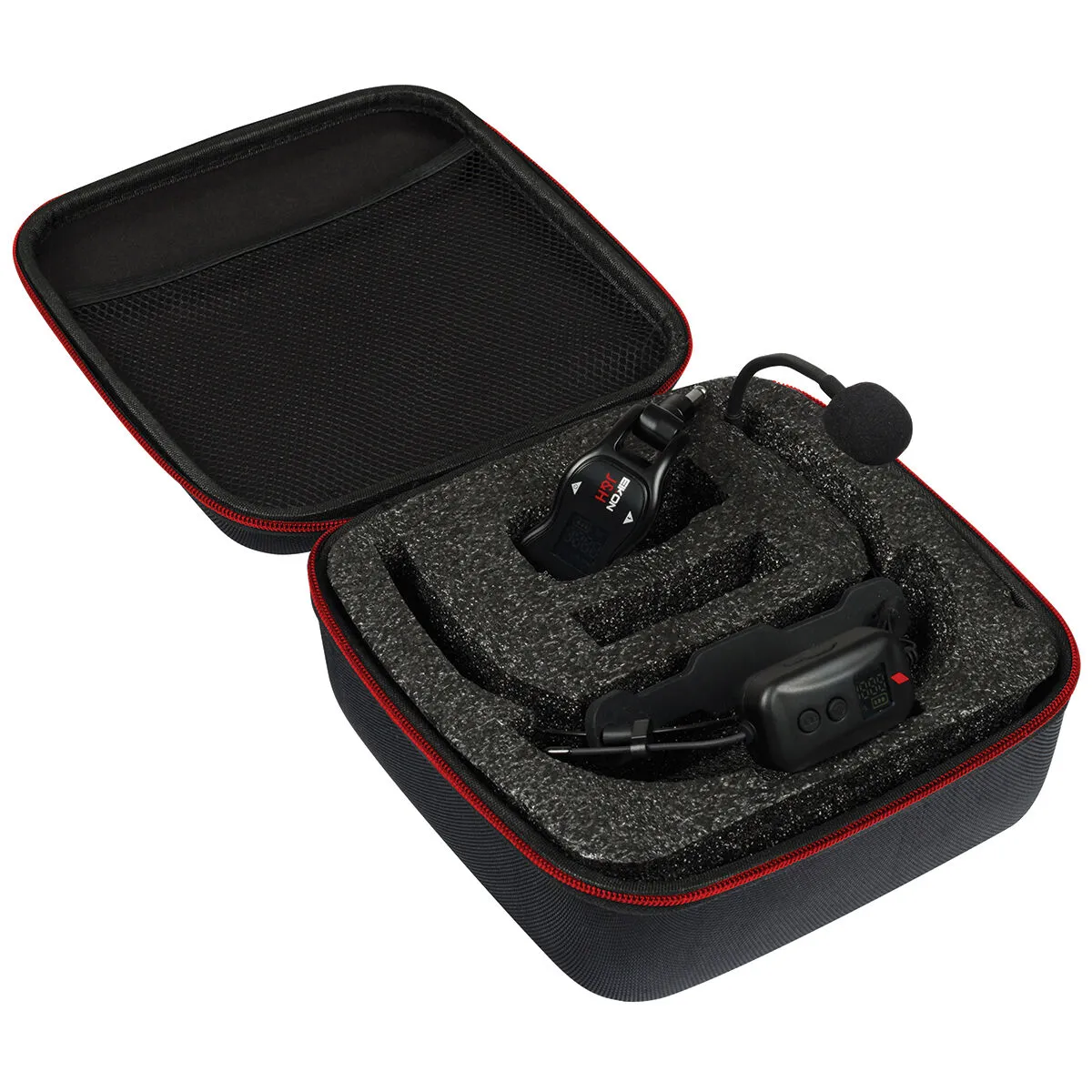

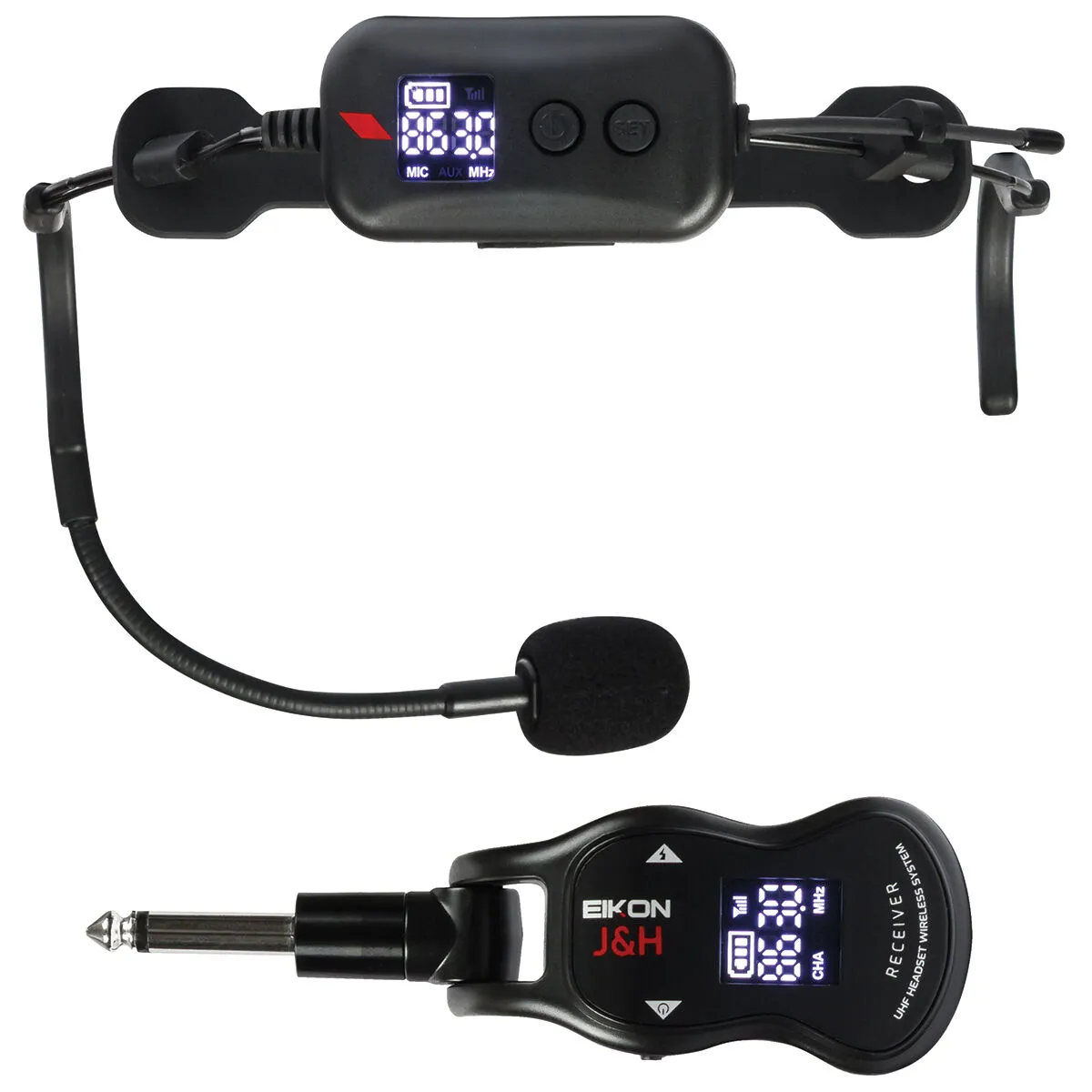

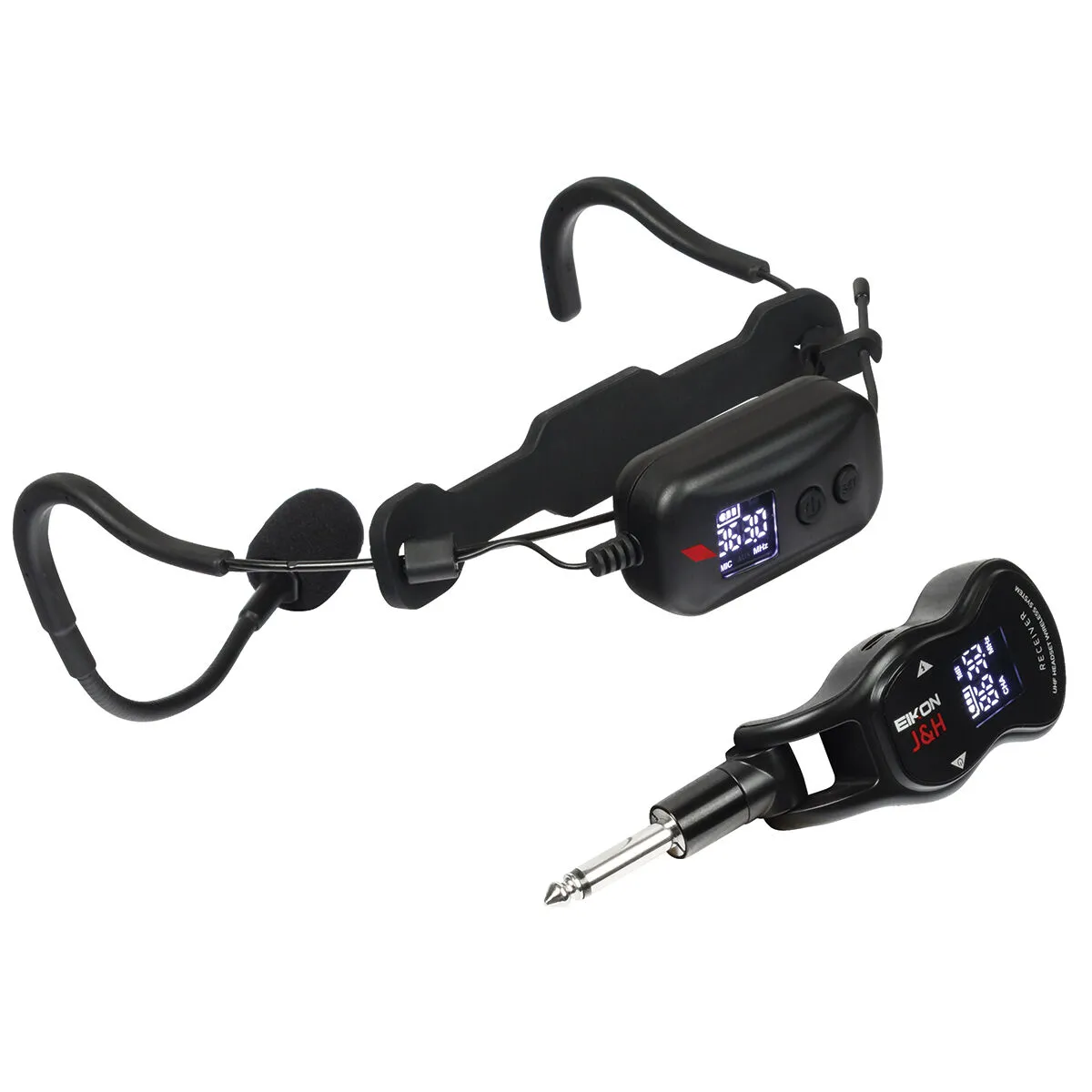

The EKJ&H comes with 3 units: the EKJ&H headset transmitter, the EKJ&H compact "connector-style" receiver, and a USB to USB-C charging cable.

50 frequency channels are available in 512 - 541 MHz, allowing the system to be used with other wireless equipment simultaneously.

  • UHF 512 - 541 MHz frequency band
  • Quartz locked modulation mode
  • Up to 20 meters range
  • Built in 3.7V/500mA lithium battery
  • 5V USB-C charging cable included
  • Up to 4 hours autonomy
  • Up to 6 systems usable in the same location

Download Manual HERE

TECHNICAL SPECIFICATIONS

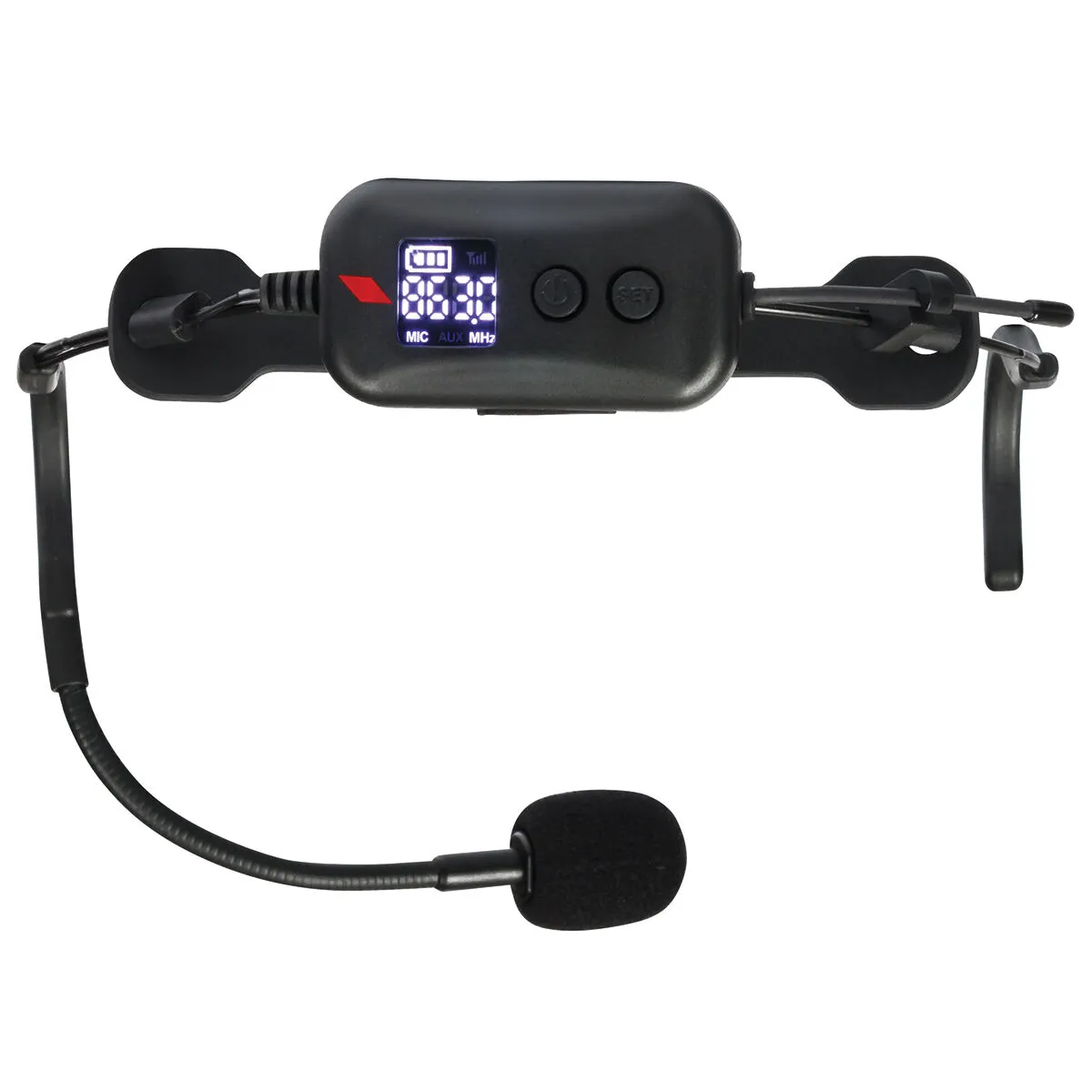

EKJ&H – UHF PLL Headset Transmitter

RF Channels

50 frequency presets

RF Frequency Band

UHF: 512 - 541 MHz

RF Frequency Stability

±0,002%

RF Oscillation Mode

Quartz locked

RF Modulation Type

Wideband FM Stereo

RF Output Power

10mW

Sub-harmonic

< 40 dB

Operating current

130 mA

Operating Time

3 to 5 hrs (depending on use conditions)

Operating Power Supply

3.7 V / 500 mA - built-in Lithium battery

Charging mode

USB charging 5V – type USB-C connector

Charging time

4 hours

Weight

0.50 Kg

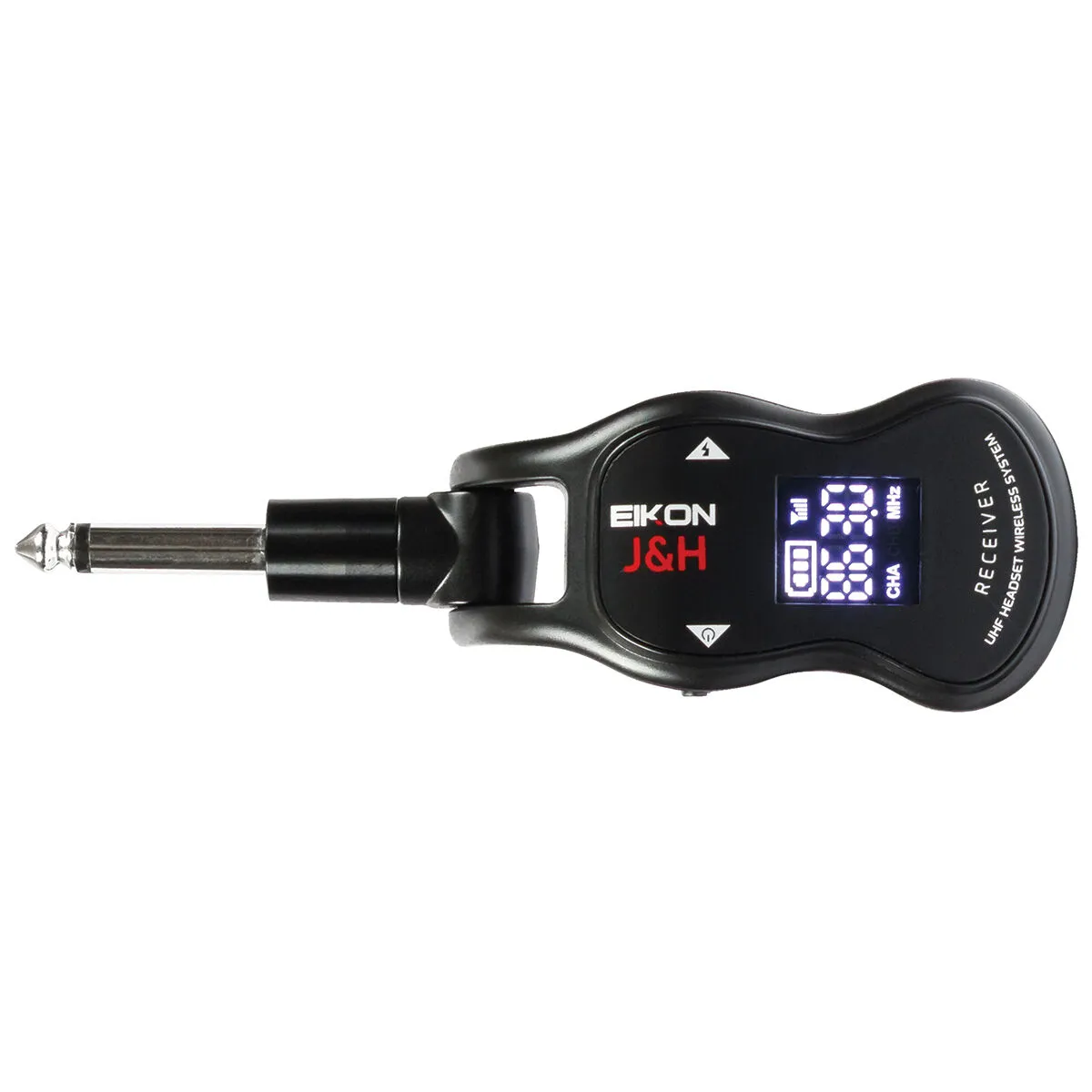

EKJ&H –UHF PLL Receiver

RF Channels

50 frequency presets

RF Frequency Band

UHF: 512 - 541 MHz

RF Frequency Stability

±0,005%

RF Oscillation Mode

Quartz locked

RF Modulation Type

Wideband FM Stereo

RF Receiving Sensitivity

< -95 dBm

RF Receiving range

20 meters depending on used band conditions

Audio dynamic range

106 dBm

THD Distortion

< 0.5%

S/N Ratio

> 90 dBA

Audio output connector

6.3 mm Mono Jack

Output Power Max (continuous)

400 mW

Operating current

80 mA

Operating Time

5 hours

Operating Power Supply

3.7 V / 500 mA - built-in Lithium battery

Charging mode

USB charging 5V – type USB mini connector

Charging time

3 hours

Weight

0.05 Kg

SKU EKJH
Barcode # 8032496928263
Brand Eikon
