Line 6 HX Stomp Compact Guitar Amp and Effects Processor

The HX Stomp™ amp and effects processor may be used as a “super stompbox,” a backup or travel rig, an add-on tone expander with other modelers, an audio interface—or a complete guitar or bass rig. Although compact in size, it delivers the same professional-grade sound quality and authentic HX® Modelling found in our market-leading Helix® processors.

AUTHENTIC TONE
The SHARC® audio engine in HX products accurately recreate the sonic characteristics and dynamic playing response of classic and modern amplifiers and effects.

HX CABS/IMPULSE RESPONSES
Helix cabinet models provide low-end reproduction and overall definition equivalent to a 2048-point impulse response (IR), and third-party impulse responses may also be loaded.

COMPONENT MODELING
Each stage of an amp’s circuitry is measured and the results matched to the original during the modelling process, ensuring realistic sound and an authentic playing experience.

BEHAVIORAL MODELING
HX Modelling technology captures the unique behaviour of analog effects devices by measuring their individual components, resulting in authentic recreations of even notoriously difficult-to-model effects such as germanium fuzz and “bucket-brigade” analog delay pedals.

INTERACTION
HX processors feature a clear interface that enables fast tone creation and easy interaction—all with a minimal learning curve and the elimination of complex menu diving.

CAPACITIVE-TOUCH FOOTSWITCHES
Simply touch a footswitch to instantly jump to any block and quickly adjust a parameter or assign controllers. Color-coded LED rings convey footswitch assignments and status at a glance.

SNAPSHOTS
Snapshots enable you to create multiple variations within a single preset and seamlessly transition between them, without the audio dropouts that occur when switching between presets.

I/O LEVEL SHIFTING
A switchable line-level input enables keyboardists, DJs, and producers to connect electronic instruments or use HX products as outboard processors in the studio.

ROUTING
HX processors easily integrate into pedalboard and studio rigs thanks to their flexible routing capabilities. Internal routing includes parallel stereo signal paths, while inputs and outputs include stereo-linkable effects loops.

COMMAND CENTER
HX processors can serve as command centers for any rig. MIDI messages can be sent manually via footswitches (or an optional expression pedal), and up to six commands can be sent automatically at preset or snapshot recall. Even QWERTY hotkey commands can be sent via USB.

ANALOG BYPASS
Switchable analog bypass routes signals at the input(s) directly to the output(s) without undergoing A/D/A conversion.

HX EDIT
HX Edit features the same intuitive user interface as HX processors. Create complex signal chains with ease, adjust settings and parameters using dedicated sliders, customize footswitch labels, and more.

POWERCAB
Powercab active guitar speaker systems were designed to provide an organic “amp-in-the-room” playing experience when paired with Helix, HX Stomp, or other amp modelers.

Connections:
Here are just a few of the many ways to connect HX Stomp to other gear:

  • PEDALBOARD
  • POWERED SPEAKERS
  • STUDIO
  • DSP EXPANSION
  • 4-CABLE METHOD
  • HYBRID AMP/DIRECT SETUP

Features:

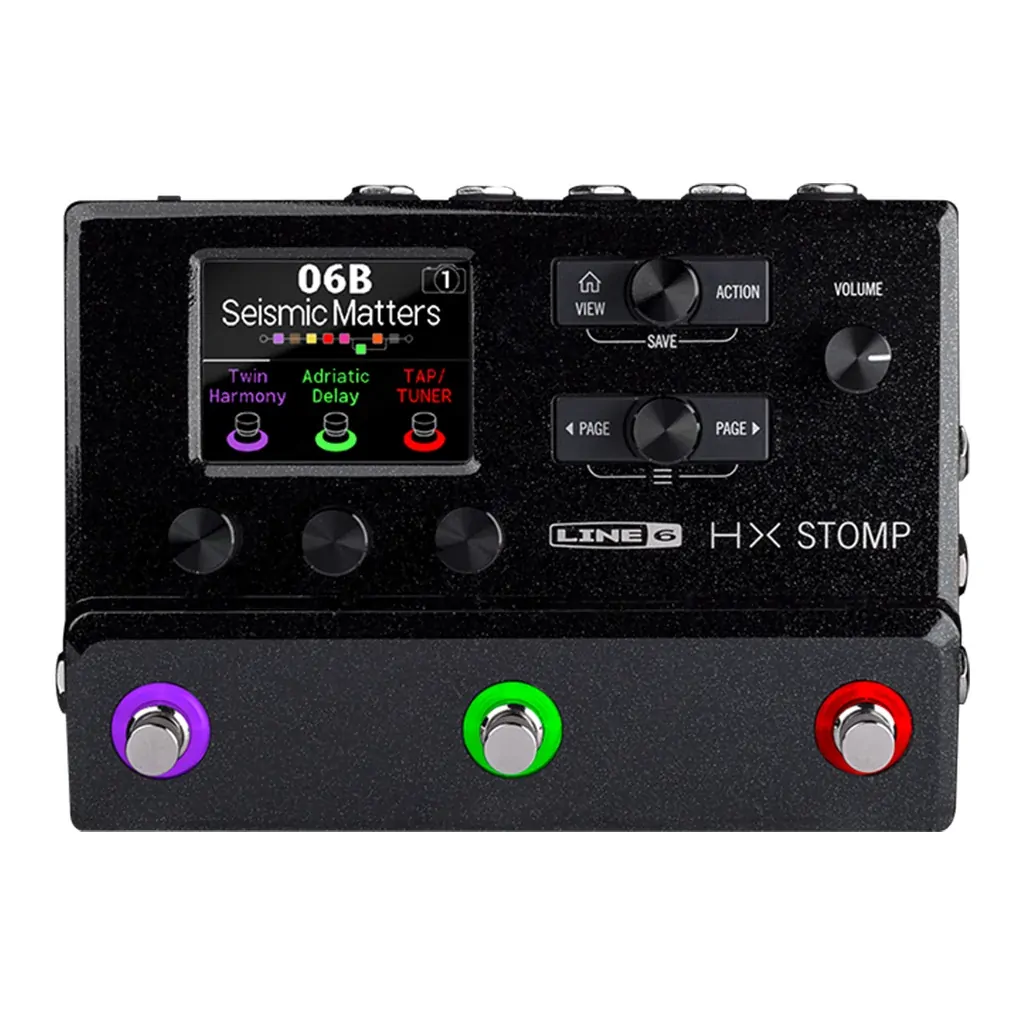

  • Main Display - This 2.4" (6cm) colour LCD is your window into the power of HX Stomp.
  • Home/View - Press to return to the main Home screen If you ever get lost. Press Home again to toggle between Play view and Edit view.
  • Action - Press to open the Action panel for the selected block or menu. From Edit view, the Action panel lets you move, copy, paste, and clear blocks. Press Home and Action together to open the Save menu for renaming and saving changes to a preset. Press both buttons twice to quick save.
  • Upper Knob - In Play view, turn to select a preset. Press to open the Preset List. In Edit view, turn to select a block for editing. Press to bypass/enable the selected block.
  • Lower Knob - In Edit view, turn to select the model assigned to the current block. Press to open the Model List.
  • Page - In Play view, press < Page or Page > to change footswitch modes. In Edit view, press to view more parameters for the selected block or menu. Press both < Page and Page > to dive deeper into HX Stomp. You'll find Controller Assign, Global Settings, and other menus.
  • Volume - Turn this knob to control the main output volume and headphone volume.
  • Knobs 1-3 - In Edit view, turn one of the three knobs below the main display to adjust the value of the parameter above it. Press the knob to reset the parameter value. If a rectangular button appears above a knob, press that knob to engage its function.
  • Footswitches 1-3 - These capacitive-touch footswitches feature colour LED rings that convey footswitch assignments and status at-a glance.

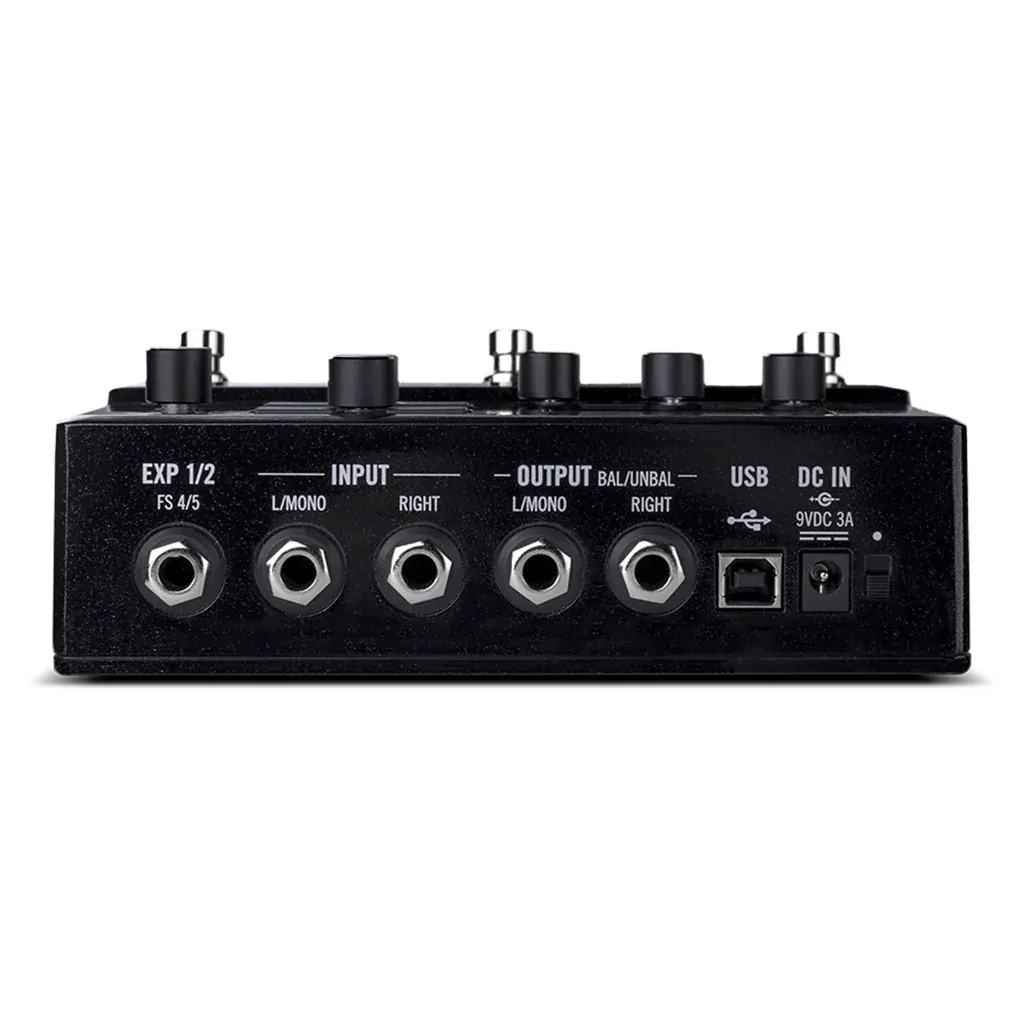

  • EXP 1/2, FS 4/5 - An optional expression pedal can be connected here and assigned to control nearly any parameter or combination of parameters. Use a "Y" cable to connect two expression pedals or two footswitches.
  • INPUT L/MONO, RIGHT - Connect mono instruments or pedals to the L/Mono input. Connect stereo pedals, keyboards, synths, or modelers to the L/Mono and Right inputs.
  • OUTPUT L/MONO, RIGHT - Use unbalanced (TS) 1/4" cables to connect to other pedals, your amplifier, or FRFR speaker(s). Use balanced (TRS) 1/4" cables to connect to mixers, studio speakers, or any other device that accepts balanced mono input signals. When using only a single cable of either type, connect it to the Left/Mono 1/4" jack.
  • USB - HX Stomp functions as a multi-channel 24-bit/96kHz audio interface for Mac® and PC, with DI, re-amping, and MIDI capabilities built in. HX Stomp can also record to an Apple® iPad® (with optional Apple Camera Connection Kit).
  • DC In - Connect the supplied DC-3 power supply here.
  • Power Switch - Just in case you ever stop playing for more than a few hours.

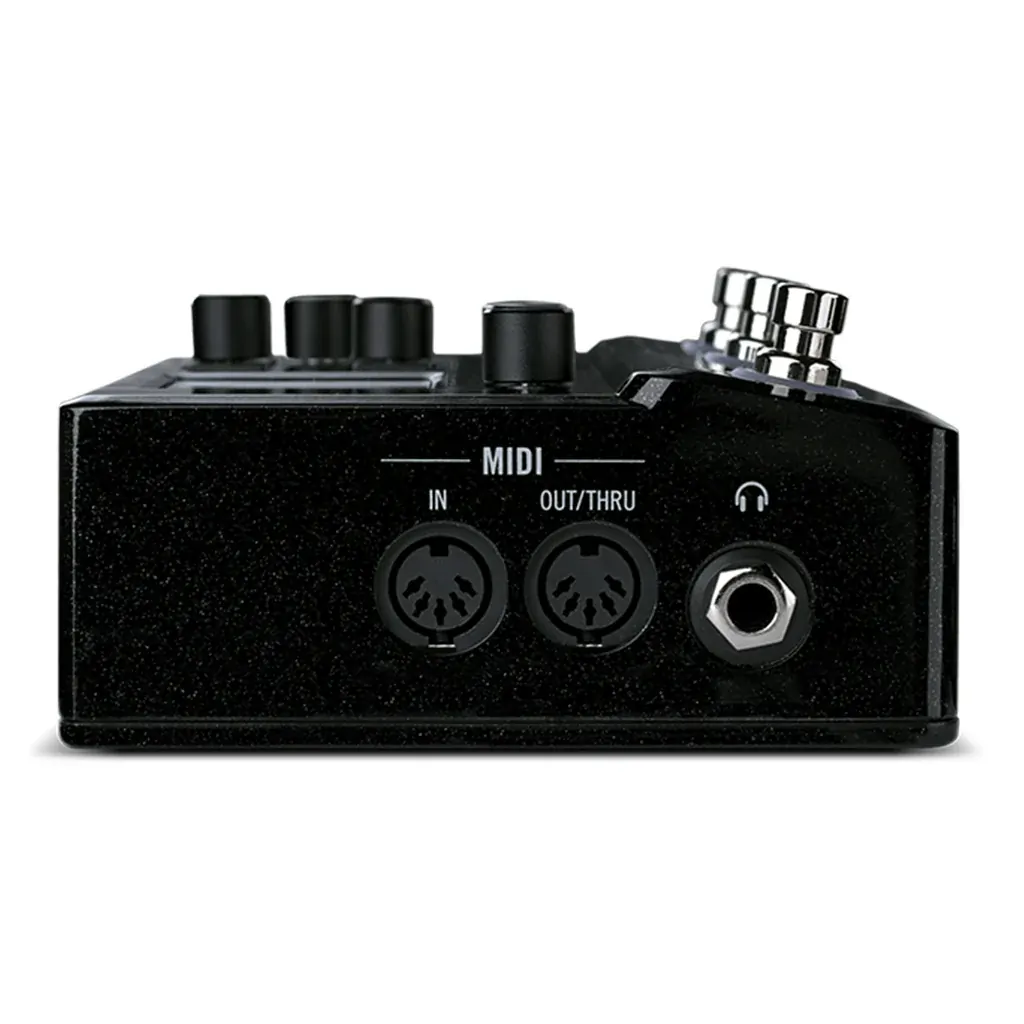

  • MIDI In, Out/Thru - Connect HX Stomp to your MIDI gear. HX Stomp sends and receives Program Change, Continuous Controller, and other MIDI messages.
  • Phones Out - Connect stereo headphones here and use the Volume knob to adjust the volume.

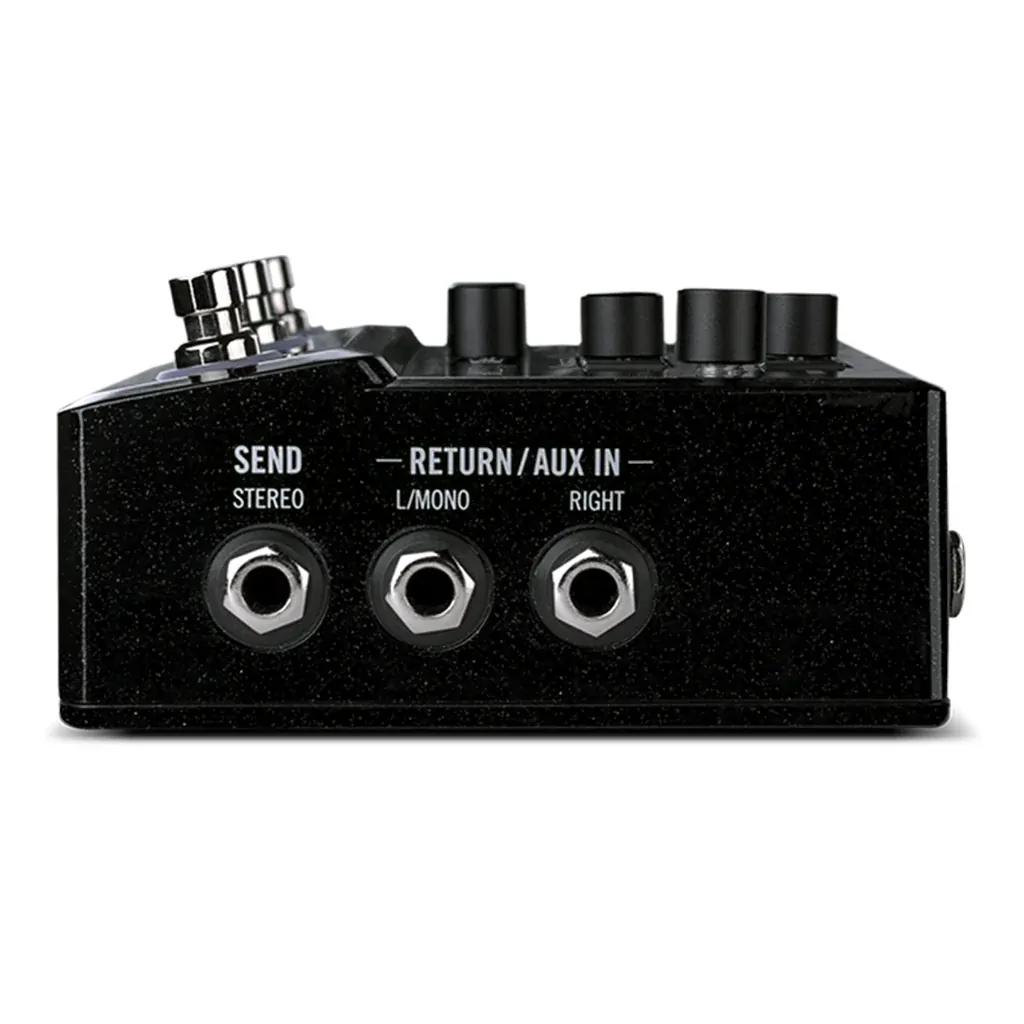

  • SENDS/RETURNS L/R - These 1/4" inputs and outputs can be used as standard effects loops for inserting pedals and other external devices into your signal chain, or as additional inputs and outputs when using 4-Cable Method and other alternative routing configurations.
SKU AAF6422
Barcode # 614252317559
Brand Line 6
