Sennheiser EW 500 G4-945-AS

Wireless Microphone System

SKU: 509847

$1,599.00
RRP $1,949.00
SAVE $350.00
Share:
  • IN STORE
  • Out Of Stock
  • SUPPLIER
  • Out Of Stock
  • (Orders dispatched in 1 to 3 business days from Supplier)

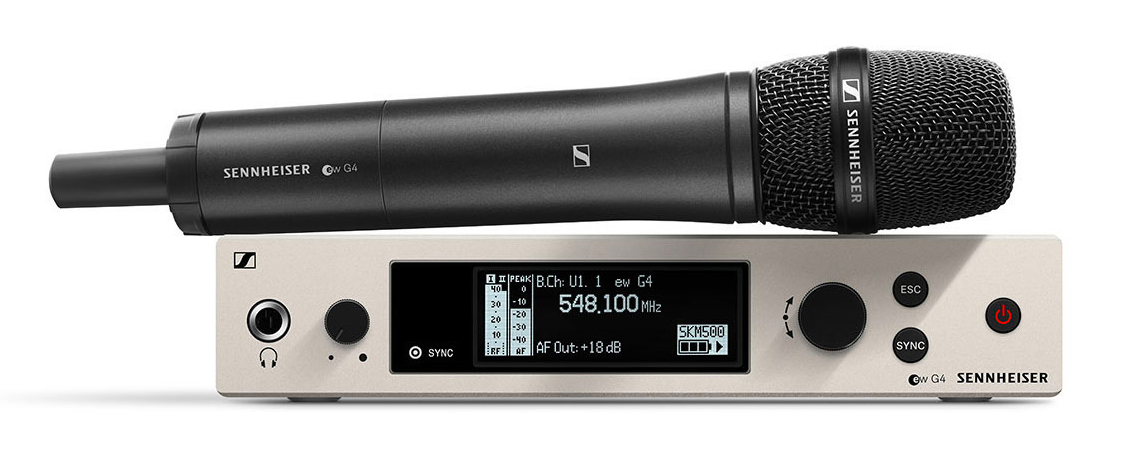

Sennheiser EW 500 G4-945-AS Wireless Microphone System

For professional live performances, this set consists of 1 SKM 500 G4 handheld, 1 MMD 945 supercardioid dynamic capsule, 1 em 300-500 G4 rackmount receiver, 1 GA3 rack kit, and 1 mic clip

Renowned sound engineers rely on ew 500 G4's flexibility, especially when handling multi-channel settings on the world's music stages. Up to 88 MHz bandwidth, up to 32 channels. Ethernet connection for Wireless Systems Manager (WSM) control software included for advanced frequency coordination in multi-channel setups.

  • True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control

  • Easy and flexible wireless synchronization between transmitter and receiver via infrared

  • Up to 32 compatible channels

  • Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range

  • Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups

  • High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations

SPECIFICATIONS

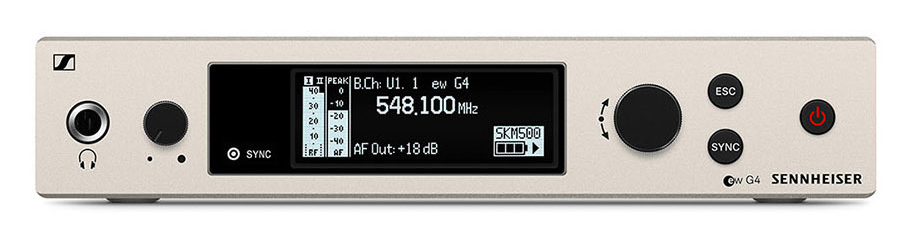

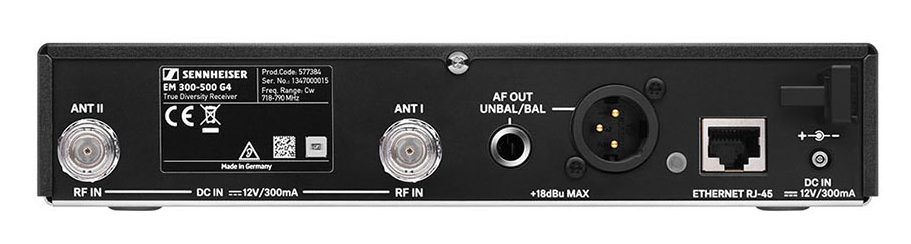

EM 300-500 G4
Frequency range: AS: 520 - 558 MHz
Dimensions: Approx. 202 x 212 x 43 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: ≤ 0.9 %
Weight: Approx. 980 g
Audio output: 6.3 mm jack socket (unbalanced): +12 dBu, XLR socket (balanced): +18 dBu
Signal-to-noise ratio: ≥ 115 dBA
Switching bandwidth: up to 88 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Modulation: Wideband FM
Power supply: 12 V DC
Antenna connector: 2 BNC sockets
Current consumption: 350 mA
Adjacent channel rejection: Typically ≥ 75 dB
Intermodulation attenuation: Typically ≥ 70 dB
Receiving frequency: Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
RF sensitivity: < 2.5 μV for 52 dBA eff S/N
Squelch: 5 to 25 dBμV in steps of 2 dB
Equalizer:
Preset 1: Flat
Preset 2: Low Cut (-3 dB at 180 Hz)
Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
Preset 4: High Boost (+6 dB at 10 kHz)
Temperature Range: -10 °C to +55 °C
Receiver Principle: True diversity
Blocking: ≥ 75 dB

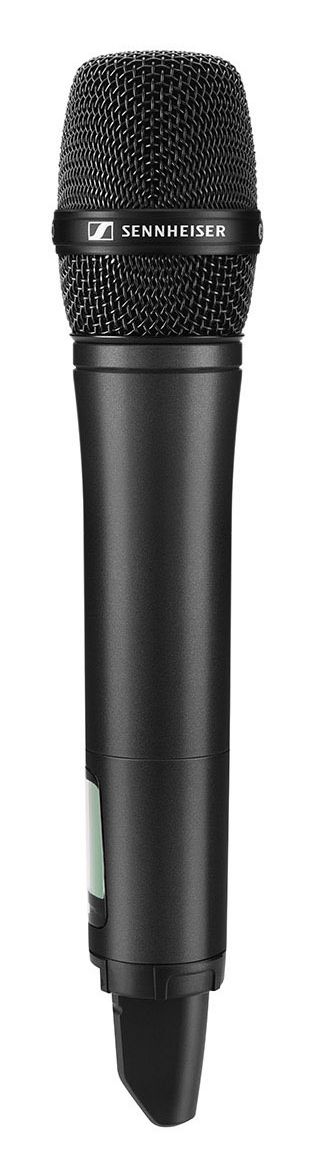

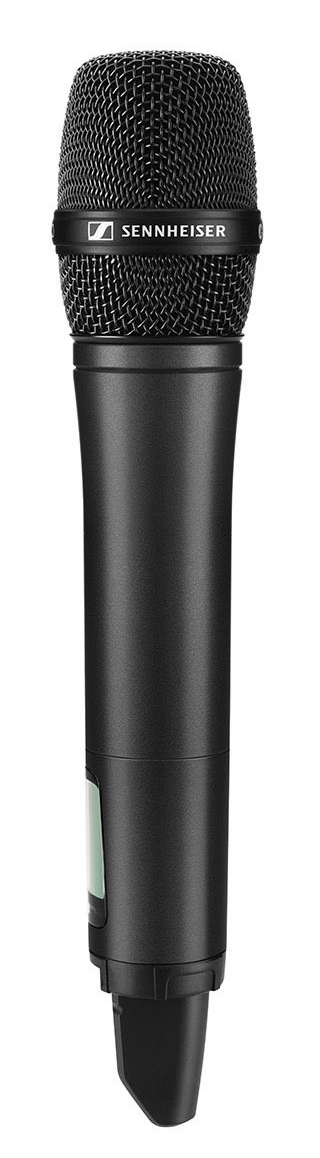

SKM 500 G4
Dimensions: Approx. Ø 50 x 265 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: ≤ 0.9 %
Weight: (incl. batteries) approx. 450 g
Signal-to-noise ratio: ≥ 115 dBA
RF output power: switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
Switching bandwidth: up to 88 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time: Typically 8 h
Modulation: Wideband FM
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption: at nominal voltage: typ. 180 mA, with transmitter switched off: ≤ 25 µA
Powering: 3 V battery / 2.4 V rechargeable battery
Transmission frequency: Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
AF frequency response: 80 – 18,000 Hz
Temperature Range: -10 °C to +55 °C
Frequency stability: ≤ ±15 ppm

MMD 945-1
Sound pressure level (SPL): 154 dB SPL
Transducer principle: dynamic
Pick-up pattern: supercardioid
Sensitivity: 1.8 mV/Pa

What's in the Box

  • EM 300-500 G4 true diversity receiver

  • SKM 500 G4 handheld transmitter

  • MMD 945-1 microphone head (only 945 variants)

  • MZQ 1 microphone clamp

  • 2 AA batteries

  • power supply

  • GA 3 rackmount set

  • 2 rod antennas

  • quick guide

  • safety guide

  • manufacturer declaration sheet

For more information, click here to visit the manufacturers website.
